Bundled Cable Assemblies: What They Are and When to Use

October 23, 2026

Quick Answer / Summary: A bundled cable assembly combines multiple fiber, copper or power runs into one pre-measured, pre-labeled unit for a defined path. It pays when a rack pattern repeats and when installation labour is expensive; it does not pay for one-off routes or for a single cable type.

Bundled cable is not cable that happens to be tied together. It is an engineered assembly in which several runs are cut to a route, grouped, labeled and tested as one item. The distinction matters because the value comes from the engineering, not from the ties.

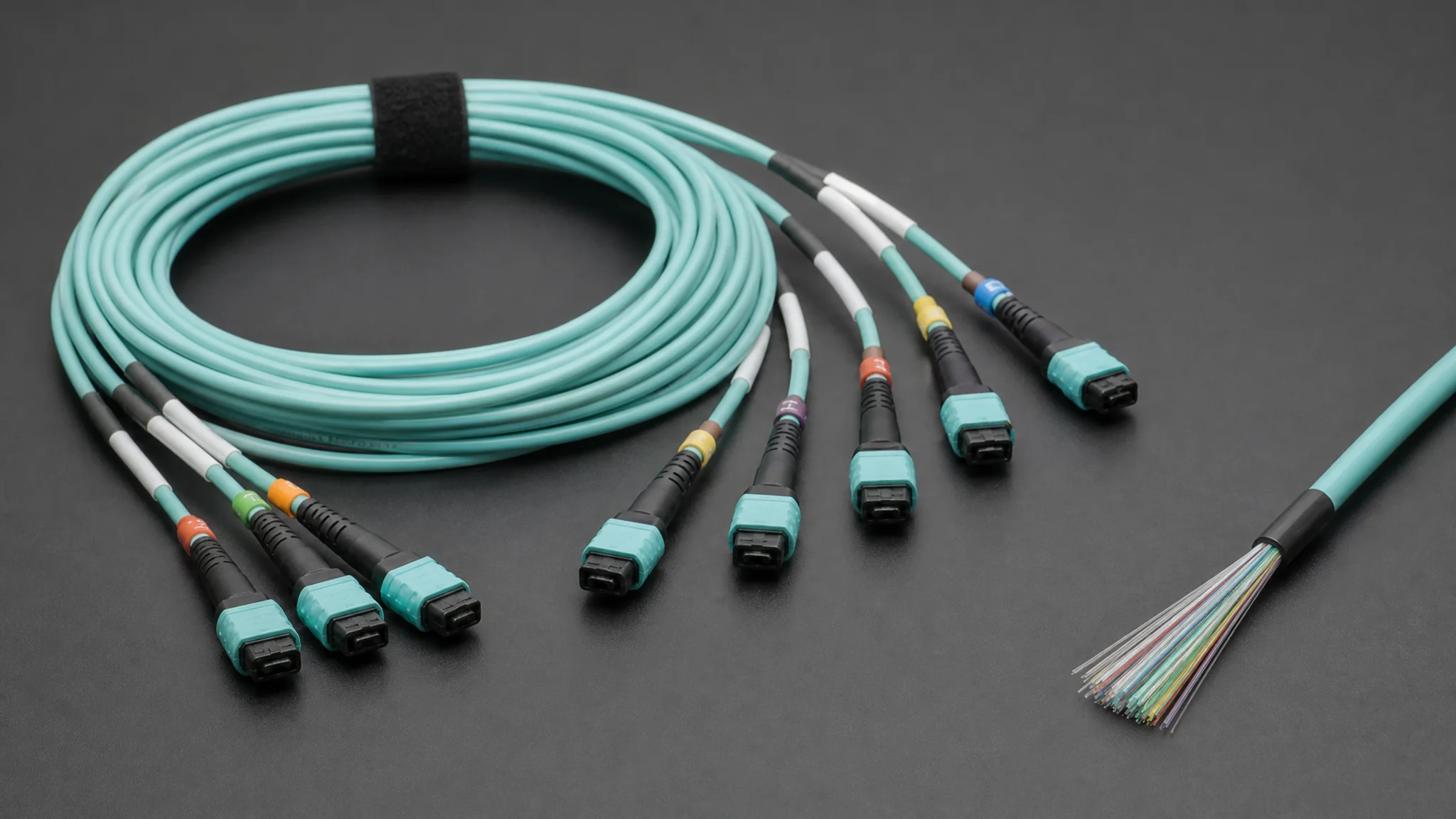

A bundle is engineered to a path, not assembled from stock.

Bundled Assembly Versus Loose Cable

Loose cable is bought by the reel or the box and cut on site. A bundled assembly is bought by the path and arrives finished. The difference shows up in the first hour of installation.

Where loose cable wins

Loose cable is flexible, immediately available and cheap per metre. For a single rack, a retrofit or a route that is still being decided, cutting on site is faster than waiting for an engineered assembly.

Where a bundle wins

When the same rack pair repeats twenty times, the engineering cost is amortised across twenty units and the installation becomes a repeatable procedure. That is the point at which a bundle stops being a premium product and starts being the cheaper option.

What Gets Bundled

Most bundles mix fiber and copper, and many include power. Mixing is deliberate: the goal is to deliver everything one rack needs in one shipment and one part number.

Fiber legs

MPO or MTP trunks for backbone connectivity, with LC or breakout legs to the switch ports. Polarity must be verified against the drawing, because a polarity error is invisible until the link is tested.

Copper and power legs

Cat6A patch leads for management and low-speed links, plus C13/C14 or C19 power cords cut to the PDU geometry. Power legs need a different bundling method so the assembly remains serviceable.

Specification Points That Decide Quality

Two bundles can look identical in a photograph and behave very differently. The differences sit in lengths, labeling and test scope.

Length discipline

Ask for the cut tolerance, not just the nominal length. A bundle that is uniformly 50 mm long forces a service loop into a rack that has no room for one, which strains connectors and looks untidy.

Label and test documentation

Require labels at both ends, matching the drawing, and a test report per assembly. Without the report, a failed leg becomes a debate about whether it was ever tested.

Commercial Terms

Bundles are engineered per project, so the commercial terms are closer to a build contract than to a catalogue order.

Minimums and lead time

Expect a project minimum and a lead time driven by engineering review and assembly rather than by cable stock. Ask when the lead-time clock starts: at order, at drawing approval, or at label approval.

Change control

Once a bundle is built, a route change means a rebuild. Agree how changes are priced and how late a change can be made before the assembly is committed to production.

Bundled Cable Versus Loose Cable

Factor	Bundled assembly	Loose cable
Unit of purchase	Path or rack pair	Reel or box
Installation labour	Lower per rack, after the first	Higher, repeated per rack
Flexibility	Low after build	High
Labeling	Factory applied	On site
Testing	Per assembly	Per reel or sample
Best for	Repeated rack patterns	One-off routes and retrofits

Practical Applications

Bundled cable is used for data hall fit-outs with repeated rack patterns, edge and modular builds, retail and branch rollouts with identical racks, and accelerated computing clusters where cable count per rack is high. It is less suitable for legacy retrofits where routes are discovered as work proceeds. A practical way to decide is to price one rack twice: once from loose stock and once as a bundle, including the labour hours to measure, cut, label and test each cable on site. Most teams find the material difference is small and the labour difference is not, which is why the second and third rack pairs usually justify the engineering. Where the pattern does not repeat, keep loose stock and revisit the idea when the next hall is designed, because a bundle built for a route that is still changing is simply an expensive cable. One more consideration is storage. A bundle is bulky and cannot be folded like a patch cord, so the site needs a place to keep it clean and straight until the rack is ready. Projects that order bundles to arrive early often create the very damage the bundle was meant to prevent, because a heavy assembly stored on a wet floor or under other cartons deforms its breakouts. Sequence the delivery to the installation, not to the purchase order, and the assembly will arrive in the condition the factory tested.

Reviewed by ZONG Cable Editorial | Last updated: 3 November 2026 | Reviewed against TIA-568 structured cabling practice and ISO/IEC 11801 fiber channel requirements.

How this guide was built: The comparison follows the economics of pre-terminated assemblies in structured cabling: engineering and test move to the factory while flexibility moves to the site. Test requirements reference insertion loss, return loss and polarity verification.

Disclosure: We do not sell bundled assemblies. Compare supplier quotes on the same drawing and test scope.

Frequently Asked Questions

Is bundled cable more expensive than loose cable?

Per metre, usually yes. Per installed rack, often no, because measuring, labeling and sorting move to the factory.

Can a bundle include different cable types?

Yes, and that is the main reason to bundle. Fiber, copper and power can ship as one item with one part number.

How is a bundle tested?

Each fiber leg is tested for insertion loss and return loss, copper legs for continuity and length, and the assembly is checked against the polarity drawing.
