Quick Answer / Summary: Custom bundling combines fiber, copper and power runs into a single pre-measured, pre-labeled assembly for a specific rack path. Specify the rack map, exact lengths, connector types, label scheme, test scope and packing; expect a project-based minimum rather than a catalogue MOQ.
A bundling solution turns a list of loose cables into one factory-built assembly with one part number, one label scheme and one shipment. The saving is not in the cable price; it is in the procurement, receiving and installation hours that disappear when fifty items become one.

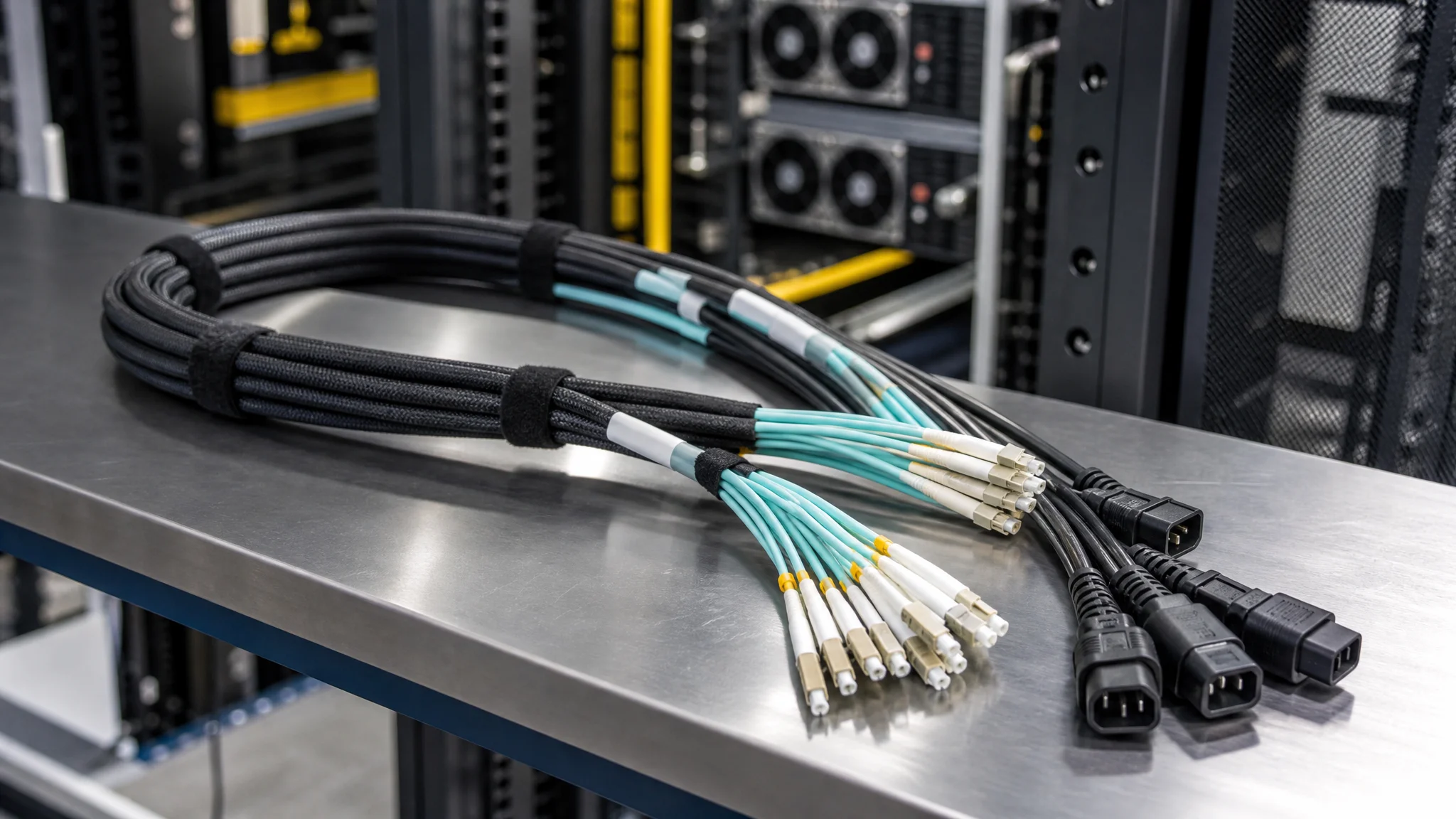

One SKU replaces dozens of loose cables, labels and deliveries.What a Bundle Actually Contains
A bundle is defined by the path it serves, not by a product family. The same factory can build a rack-to-rack fiber bundle in the morning and a top-of-rack copper kit in the afternoon, because the design input is a rack map rather than a catalogue number.
Typical contents
Fiber trunk cables, LC or MPO patch cords, Cat6A copper patch leads and power cords, grouped and tie-wrapped into one assembly. Each leg is cut to the measured route length, so the bundle arrives with the right amount of slack rather than a coil to hide.
What makes it a single SKU
The bundle is packed, labeled and tested as one item, with one part number and one packing list. That single identity is what removes the receiving and reconciliation work that consumes days on a large deployment.
The Economics Behind Bundling
Bundling is usually justified by labour, not material. Cable and connectors cost roughly the same whether they ship together or separately; the difference is the hours spent sorting, labeling and pulling individual runs.
Where the saving comes from
Pre-measured lengths remove on-site cutting and waste. Pre-labeling removes the labeling step at both ends. One shipment removes receiving checks and missing-item escalations. On a rack-pair deployment these three effects usually dominate the price difference.
Where the cost moves
The cost moves to the front of the project, into survey and engineering. Someone has to measure the routes and produce a rack map before the factory can build anything. If that input is late or wrong, the bundle is late or wrong, and rework on a bundle is more expensive than rework on a loose cable.
Design Inputs the Factory Needs
A bundling quote is only as good as the drawing behind it. Factories that receive a rack map and a label scheme can quote in days; factories that receive a list of cable types will quote a guess.
The rack map
Source rack, destination rack, port mapping, route path and the vertical and horizontal distances. Add the number of bundles per rack pair and whether redundancy is required. This document decides every length in the assembly.
Label scheme
Specify exactly what each label must say, at which end, and in what font size. A scheme that reads source-to-destination at both ends is easier to install than one that requires a lookup table, and it survives staff changes on site.
Testing, Packing and Lead Time
A bundle is tested as a system rather than as a bag of parts. That testing is the main quality difference between a bundling supplier and a cable reseller.
Test scope
Ask for insertion loss and return loss on every fiber leg, continuity and length verification on copper, and a polarity check against the drawing. For high-speed copper or AOC legs, ask for the rated-speed test rather than a continuity check.
Packing and delivery
Bundles are bulky and easy to kink. Ask how each assembly is coiled, protected and labeled on the outside of the carton, and whether deliveries can be sequenced by rack or by floor so the site receives what it is ready to install.
Common Bundle Configurations
| Bundle type | Typical contents | Best for | Key specification |
|---|
| Rack-to-rack | MPO trunks, LC patch cords, power cords | Adjacent rack pairs | Route length and port map |
| Top-of-rack kit | Cat6A patch leads, power, management | Server-to-switch connectivity | Sequential port labeling |
| Spine-leaf | MPO trunks and breakout legs | High-density fabric | Tier color coding |
| GPU cluster | AOC or DAC, power, management | AI and HPC racks | Rated-speed testing |
| Fiber plus power | Trunks, patch cords, C13/C14 cords | PDU and network together | Separation and bundling method |
Practical Applications
Bundling is used in new data halls, rack refresh programmes, edge sites and AI cluster builds where the same rack pattern repeats. It suits repeated patterns best; a one-off rack with an unknown route is usually cheaper to wire from loose stock.
Reviewed by ZONG Cable Editorial | Last updated: 3 November 2026 | Reviewed against TIA-568 structured cabling practice and ISO/IEC 11801 fiber channel requirements.
How this guide was built: Bundle structures follow current data center deployment patterns (rack-to-rack, top-of-rack, spine-leaf, accelerated computing) and standard fiber test practice: insertion loss, return loss and polarity verification against the drawing.
Disclosure: We do not manufacture bundles. Use the specification list here to compare supplier quotes on the same scope.
Frequently Asked Questions
What is a custom bundling solution?
A factory-built assembly that combines several cables for a specific rack path into one labeled SKU, cut to measured lengths and tested as a unit.
How much install time does bundling save?
Suppliers report large reductions because sorting, measuring and labeling move to the factory. Treat any specific percentage as a supplier claim and measure it on your own first rack pair.
Is there a minimum order?
Usually project-based rather than catalogue-based. A single rack pair can be built, but the engineering cost is spread over fewer units.
Can fiber, copper and power go in one bundle?
Yes, and that is where most of the procurement saving comes from. Specify separation and bundling method so the assembly stays serviceable.
What happens if the rack map is wrong?
The bundle is wrong. Rework on a finished assembly costs more than rework on loose cable, which is why the survey is the most important step.
