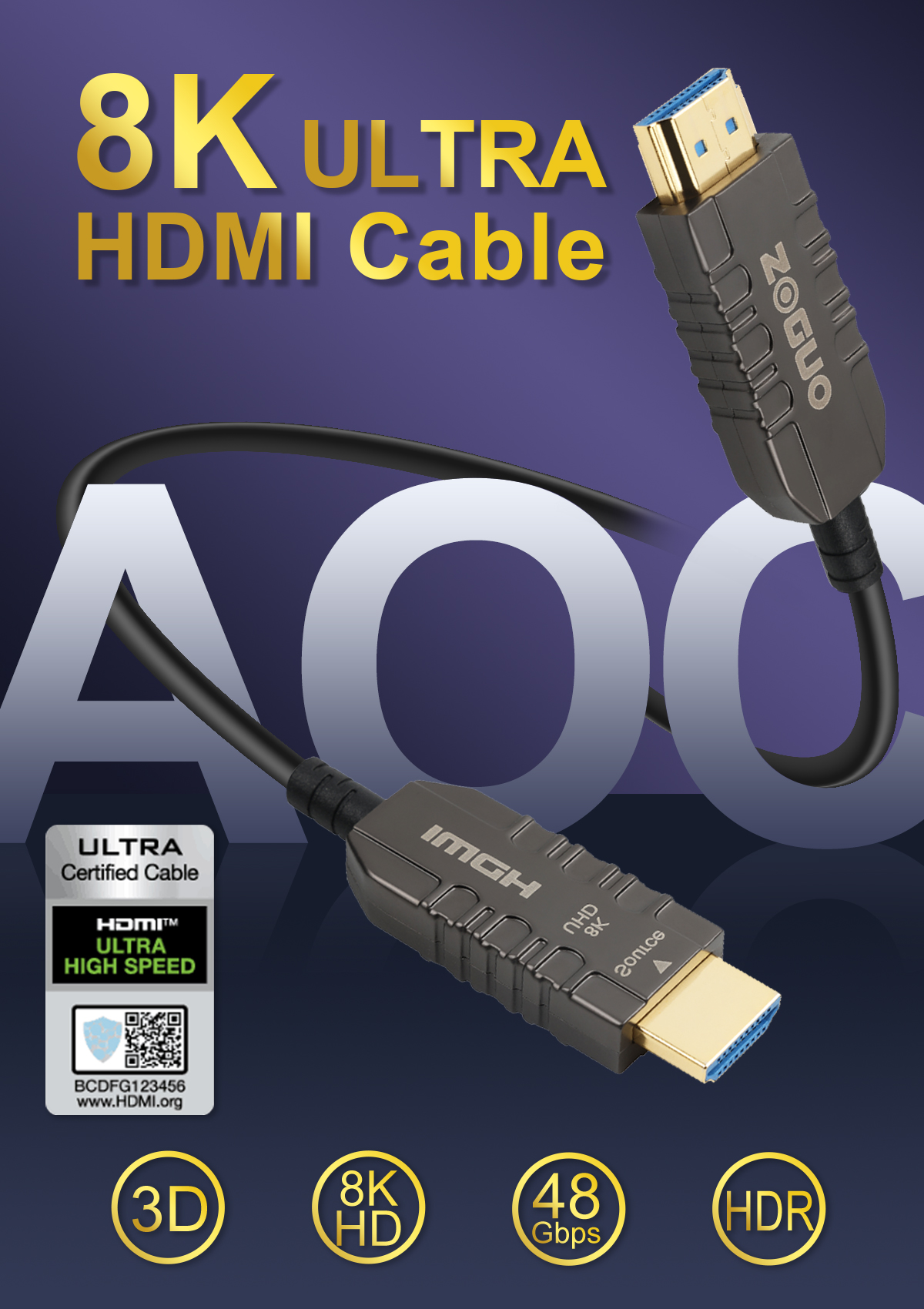

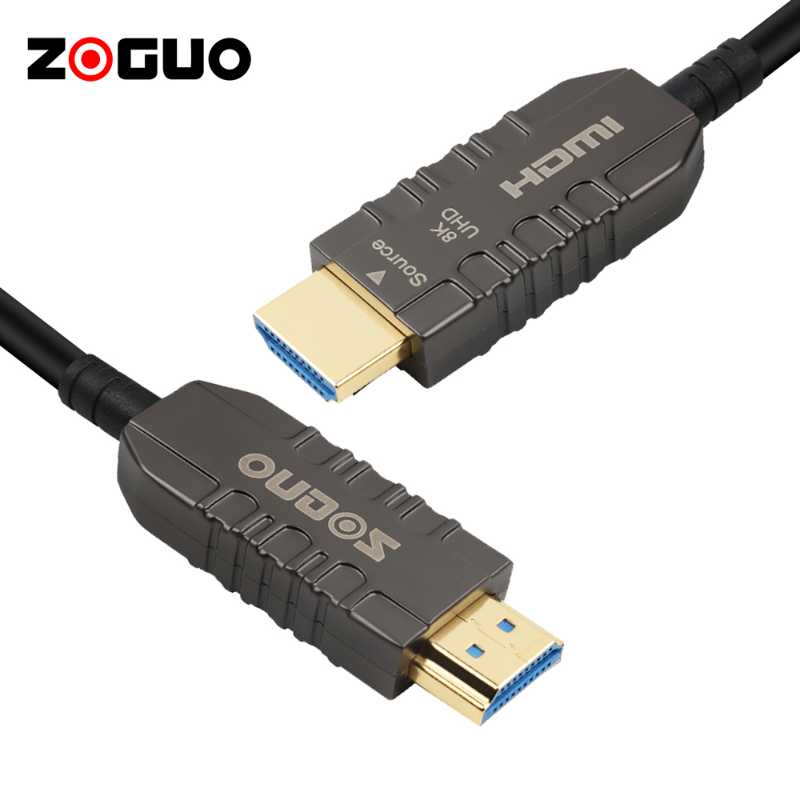

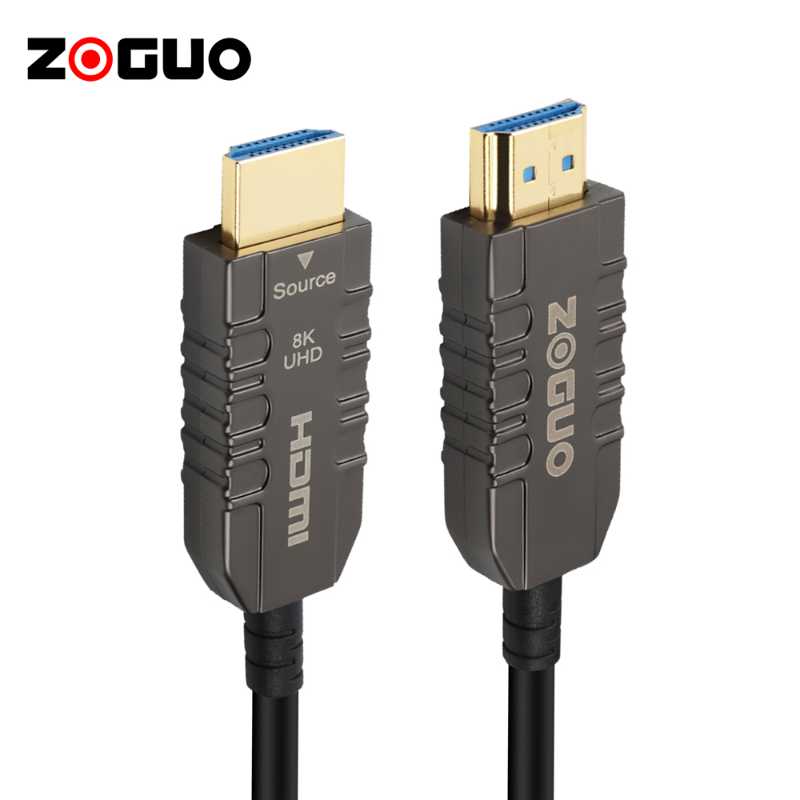

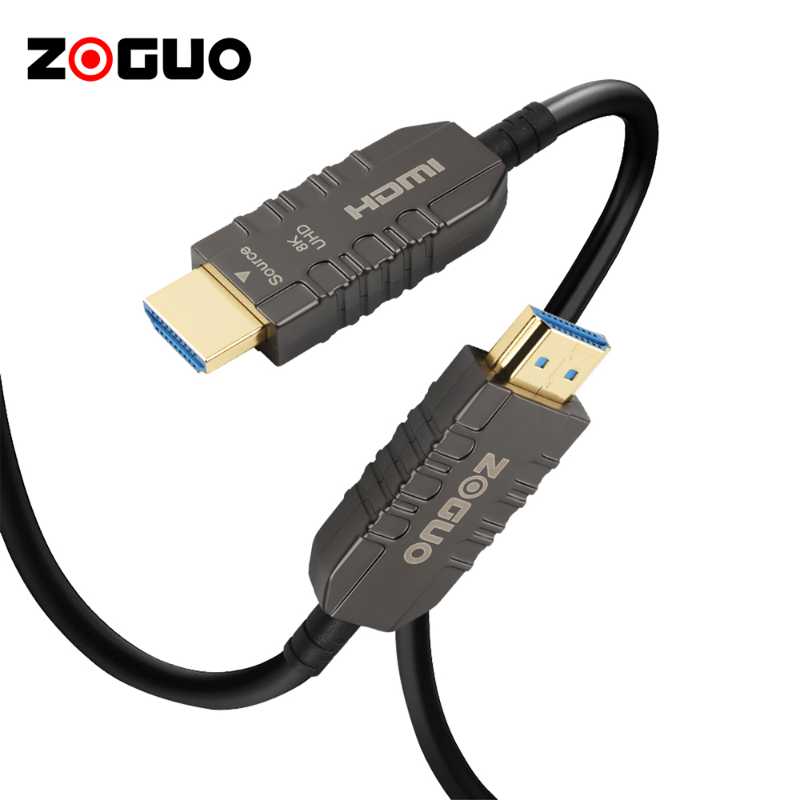

8K Fiber Optic HDMI Cable (Support PS5 8K@60HZ 4K @120Hz)

Product Features:

Support 8K@60Hz and 4K@120Hz, as specified in HDMI 2.1

48Gbps mass-capacity bandwidth. Backward compatible

Designed for transmitting up to 8K@60Hz unparalleled visual, as well as VR and 3D display signal in a lossless way even a long distance

Refresh rate at 120Hz while under 4K, ultra-fast motion UHD images to be crisp and razor-sharp, and higher refresh rate when using lower resolution

With Dynamic HDR, contrast, depth, brightness and wider color gamut are shown at ideal values on a frame-by-frame basis

With eARC, connectivity is enhanced and simplified for greater ease of use of multiple components discovery and audio optimization

Support the high-bitrate audio formats up to192kHz, 24-bit, and uncompressed 5.1 and 7.1, Dolby specific lossless audio formats, and 32-channel uncompressed audio

With VRR, gameplay will be more fluid and better detailed with nearly zero lag, judder and frame tearing

Support EDID incl. self-detecting function, ALLM, QMS and QFT

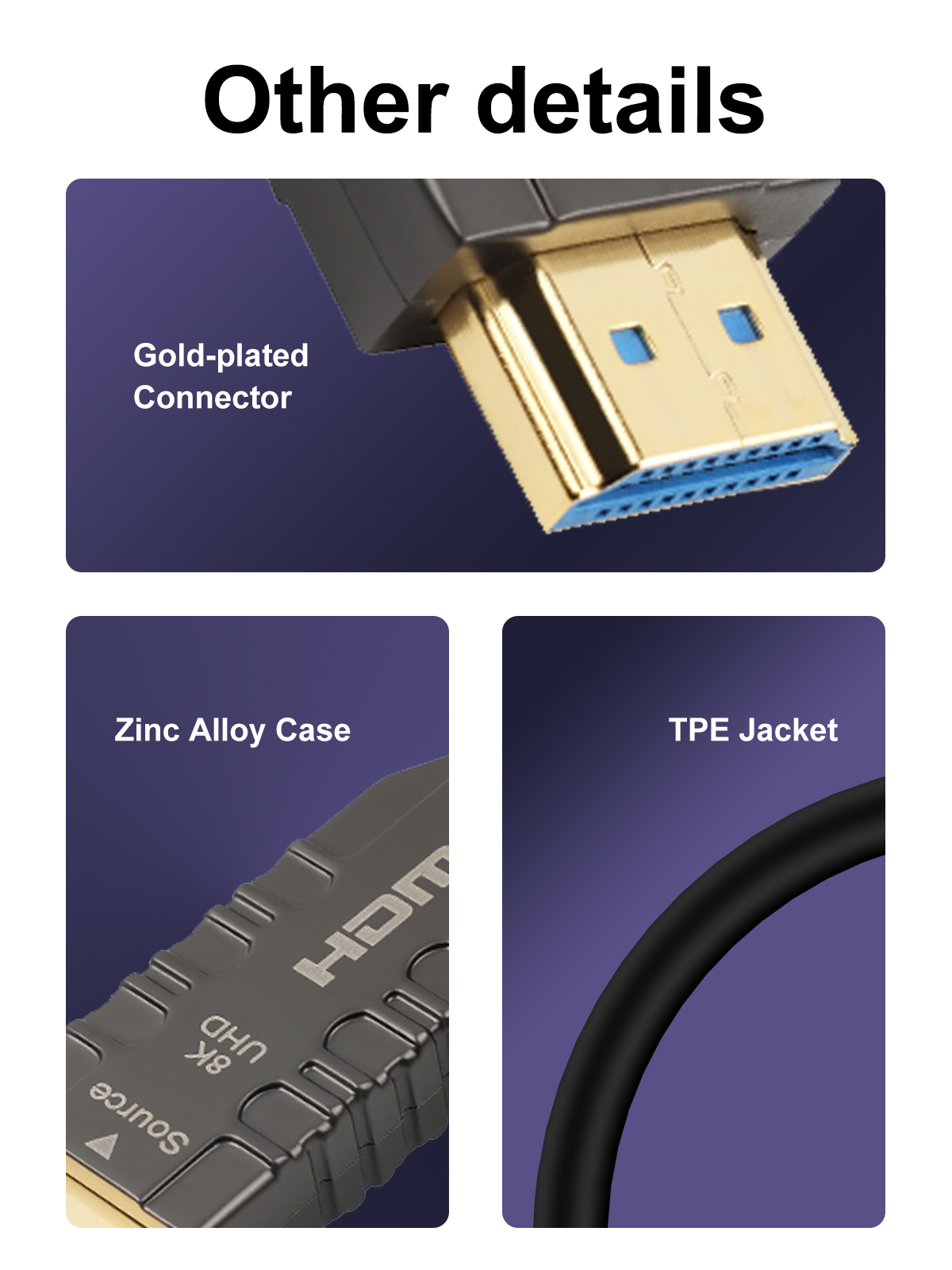

Made with strong zinc-alloy housing and corrosion-resistant gold-plated connector

High resistance against surrounding electromagnetic interference. Safe for everyone via the nil-radiation environment

Cable Length: 5M/ 10M/ 15M/ 20M/ 30M/ 40M/ 50M/ 60M/ 70M/80M/100M/200M

Model No:

ZG-8KAOCHD004

Package:

OEM/ODM

PET Blister/Coloful Box

Logo Bag/Poly Bag











Notice:

1.Before using, please make sure your source devices and display devices both are support 8K resolution

2.Pay full attention to distinguish the directionality, from "Source" to "Display"

3.When bending and using the cable, please don't pull the fiber cable violently and bend the cable<90 degree, to avoid the uneven force of the core and cause damage to the core of the cable

4.Please test the cable and check the display whether the cable will work or not before install or burried

5.Due to built-in chip in the connectors, please don't fall down and impact the connector

FAQ

Is this compatible for HDR?

Yes. it supports for throughput up to 8K with HDR.

Do this cable support Dolby atmos?

Yes. it does, but you need to know whether or not the receiver (Input) does and the box (Output) does as well to and that this option in the settings is set to play that format.

Does this work with 4k 120hz?

Yes,It can supports 10K 8K/60HZ and 4K/120HZ.

Product parameters

Connector A

Standard HDMI Type A (Gold Plated)
Connector B

Standard HDMI Type A (Gold Plated)
Inner Material

Aluminum Foil Shielding + Tinned Copper + OFC Copper Conductor
4-Core Glass Optical Fiber Conductor

Stable and Light Speed Transmission, 100m without delay and attenuation
Outer Diameter

4.8MM
Shell

Durable Zinc Alloy Metal Shell Prevent Cracking
Resolution

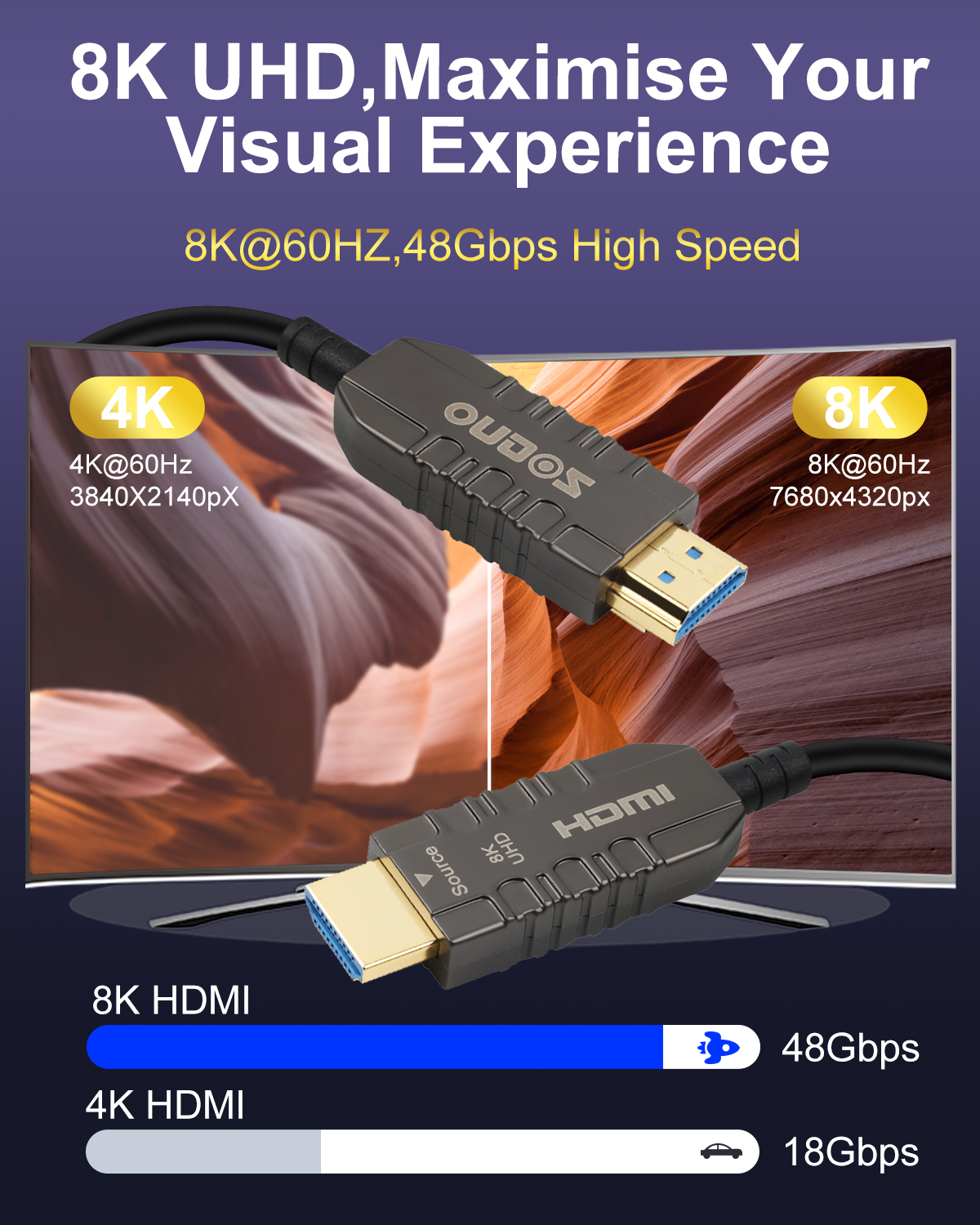

8K@60Hz(7680*4320P), 4K@120Hz(3840x2160P)(Downward Compatibility)
Not-Bidirectional Transmission & Support BT.2020

Fiber Optic HDMI 2.1 Cable only support one-way transmission "SOURCE" plug for connecting HDMI source(PS4/5, XBox 360 etc.) "DISPLAY" plug for connecting your HDMI display device(TV, Monitor, etc.); Before using the cable, please double confirm the "Source" and "Display" plug

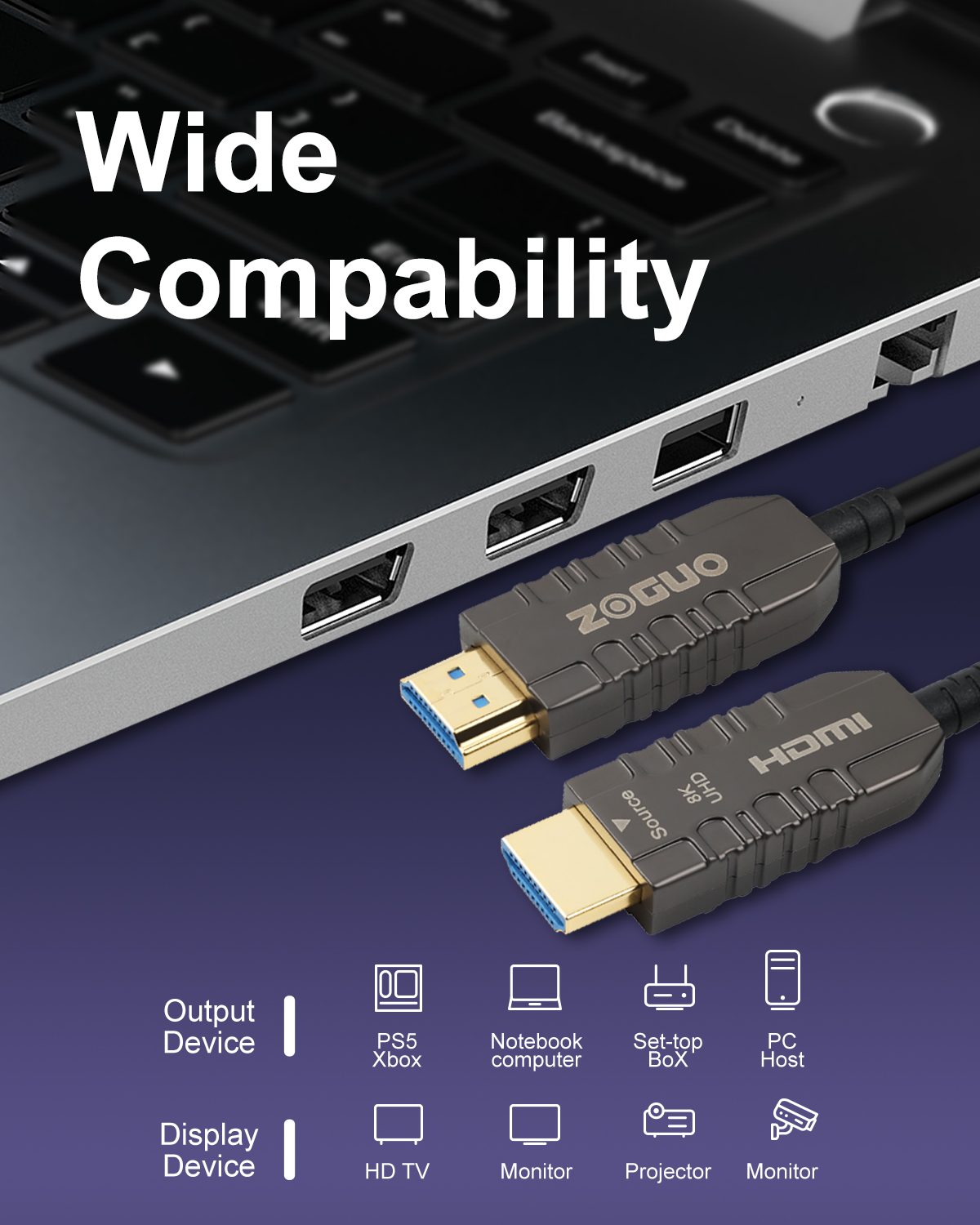

Universal Compatibility

Optic Fiber HDMI 2.1 Cable enable to connect from HDMI Source Device to 8K@60Hz HDMI Display; Compatible with PC Laptop, PS4/5, Xbox 360, Blu-Ray Player as Source; HDTV, Monitor, Projector as Display; Application for Home Theater, Outerdoor Advertising, TV Broadcasting, Medical Center, Video Conference and More
