What Is FTP Cable: The Foiled Construction
Quick answer / TL;DR: Short answer: FTP is a twisted-pair cable with an overall foil shield and a drain wire – the F/UTP construction. The foil blocks external interference; the drain wire must be grounded at the panel. Specify 'Cat6 FTP (F/UTP), 23 AWG solid, jacket rating' and confirm the drain wire and its grounding instructions on the datasheet.
FTP means foiled twisted pair: four twisted pairs wrapped in an overall foil shield with a drain wire, finished with a jacket. It is the shielded construction most Cat6 installs use when the environment asks for one, and the code on the jacket is what separates it from its unshielded sibling. This guide explains the build and the buying implications.
This is the FTP primer: the construction layers, the codes, and what a purchase order must state to get the right cable.

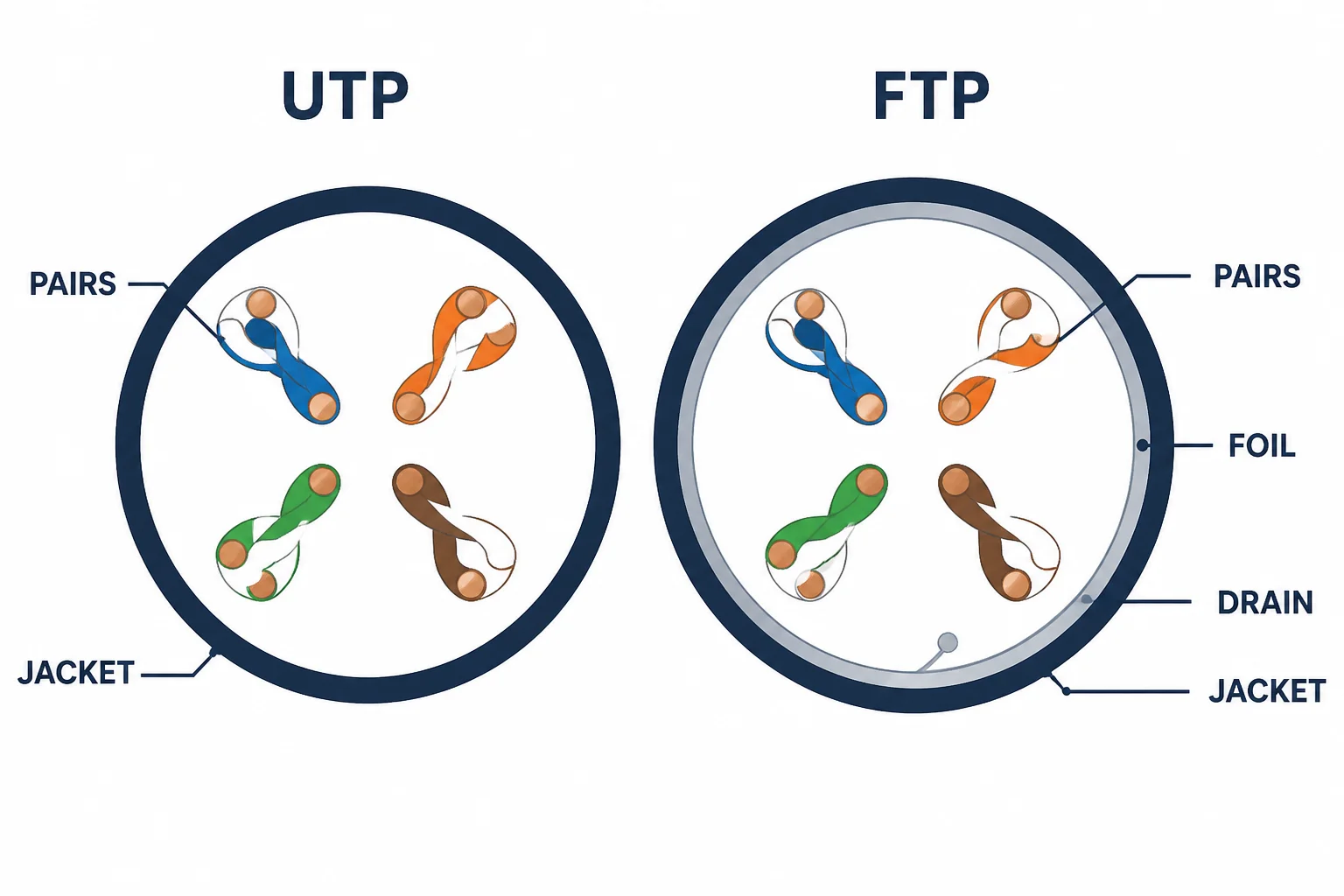

The Construction Layers
| The layer | What it does |
|---|---|
| Four twisted pairs | Carry the signal – the same cores as UTP |
| Foil shield | Wraps all four pairs; rejects external interference |
| Drain wire | A bare conductor in contact with the foil – the grounding path |
| Jacket | Mechanical protection and the route rating |
The layers explain the name: foiled, twisted pair. The differences from UTP are the foil and the drain – and the obligation they create.
The Codes a Buyer Sees
- FTP and F/UTP: the same construction – overall foil, unshielded pairs
- S/FTP: braid overall plus foil per pair – a heavier shield class
- U/UTP: no shield – the unshielded default
- The jacket print: the code plus the category – the first thing to read
The codes are the purchase's shorthand. Two suppliers quoting 'FTP' and 'F/UTP' quote the same product; one quoting 'S/FTP' quotes a different one.
What FTP Changes in Practice
| The aspect | The FTP effect |
|---|---|
| Interference | Better rejection than UTP in noisy paths |
| Grounding | Required – the drain wire bonds at the panel |
| Handling | Stiffer, larger diameter, tighter bend radius |
| Termination | The foil and drain need care at the connector |
Standards and Verification
| The reference | What it governs |
|---|---|
| TIA-568.2-D | Category construction and shielded cabling practice |
| ISO/IEC 11801-1 | Screening classes (F/UTP, S/FTP) |
| IEC 61156 | Pair and shield construction definitions |
Per-SKU foil coverage and drain constructions are not provided in the knowledge base. The construction codes are standard; confirm the build and the grounding instructions on the supplier's datasheet.
Real-World Applications
The workshop run
A control network beside packaging machinery: Cat6 FTP specified for that segment – the foil doing the work the pairs cannot.
The quote comparison
Two suppliers quoting 'shielded Cat6': the codes requested – one F/UTP, one S/FTP – and the comparison restarted on defined constructions.
The floating shield
An FTP install with the drain unconnected: intermittent errors traced to the shield. The grounding fixed, the construction finally complete.
Related reading: The FTP-versus-UTP decision? Read the buying comparison — blogs/news/ftp-vs-utp-buying
Related reading: The screening families explained? Read what is shielded cable — blogs/news/what-is-shielded-cable
Frequently Asked Questions
What does FTP mean in ethernet cable?
Foiled twisted pair – four twisted pairs with an overall foil shield and a drain wire (the F/UTP construction). The foil rejects interference; the drain must be grounded.
Is FTP the same as F/UTP?
Yes – the two names describe the same construction: overall foil around unshielded pairs.
Does FTP cable need grounding?
Yes – the drain wire bonds to ground at the patch panel. Without grounding, the shield does not deliver its benefit and can cause intermittent faults.
Is FTP better than UTP?
In interference-heavy environments yes; in quiet rooms UTP is simpler and cheaper. The environment decides, and the grounding obligation comes with the foil.
