RJ12 vs RJ45: The Width Difference
Quick answer / TL;DR: Short answer: RJ12 has six contacts in a narrower body and is used for telephone and control signalling; RJ45 has eight contacts and carries ethernet. An RJ12 plug will not latch in an RJ45 jack, and forcing it can bend contacts. In a building with both, label the outlets and keep the two cable types physically separate.

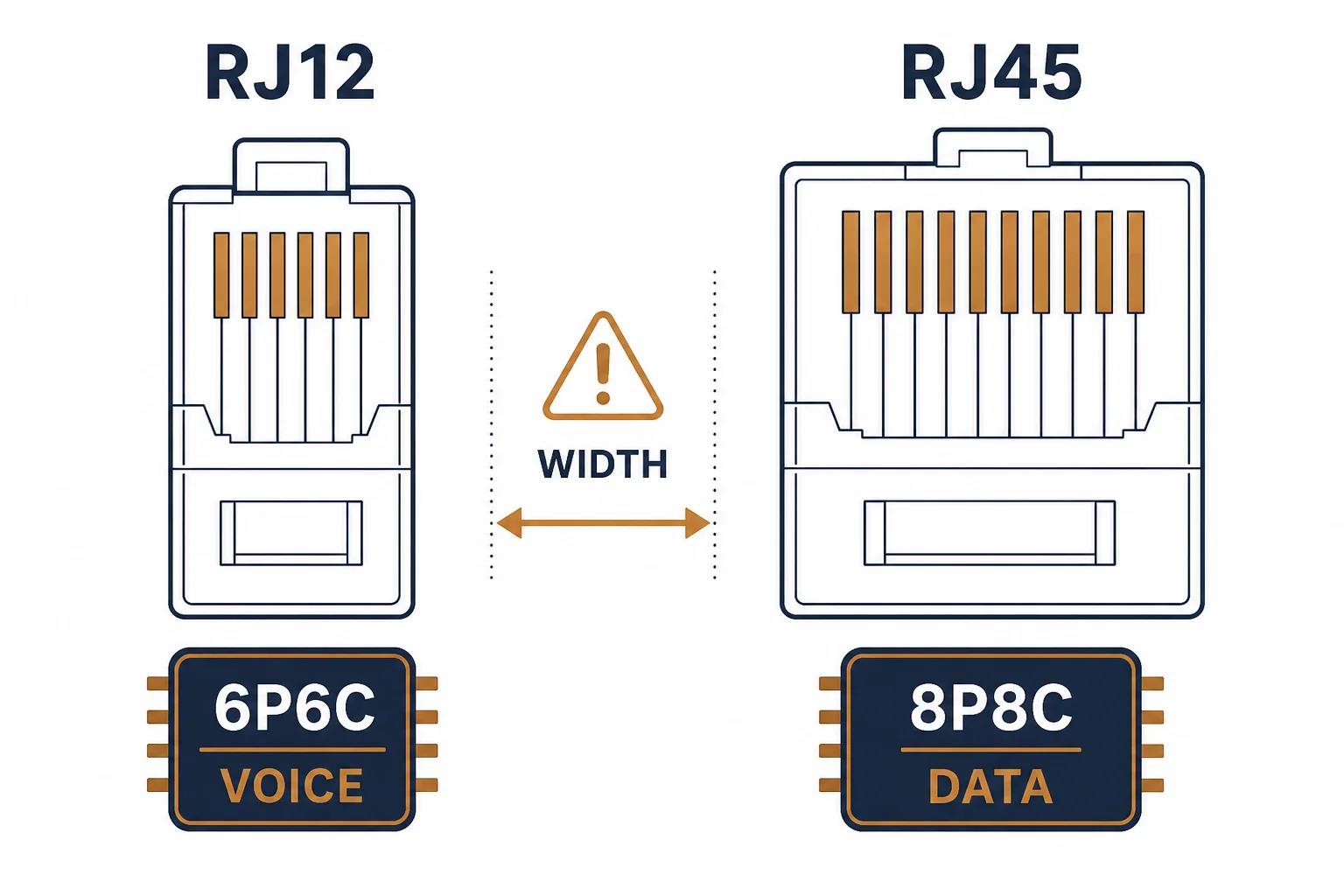

RJ12 and RJ45 look like relatives and are not interchangeable: RJ12 is a six-position plug used for voice and low-speed signalling, RJ45 is an eight-position plug used for ethernet. The width difference is small enough that the wrong plug can be forced partway into the wrong jack, which is how equipment gets damaged.
This is the comparison: the physical facts, what each connector carries, and the cases where the two meet in one building.
The Physical Facts
| The connector | Positions | Typical use |
|---|---|---|
| RJ12 | 6 | Voice, alarm and control panels |
| RJ11 | 6 (4 wired) | Telephone handset and line |
| RJ45 | 8 | Ethernet data |
The position count is the reliable identifier; the names are used loosely in retail listings.
What Each Carries
- RJ12: one or two voice pairs, or low-speed control signals
- RJ45: four twisted pairs carrying ethernet
- Neither is designed to carry power beyond PoE on RJ45
- Adapters exist, but they do not make a voice cable into a data cable
An adapter solves the mechanical mismatch, not the electrical one: the pair count and category still decide what the link can do.
Where They Meet
| The situation | The practice |
|---|---|
| Office with voice and data | Different outlet types, labelled |
| Home with one cable run | Confirm which service before terminating |
| Alarm or access control | RJ12 for signalling, separate from data |
| Retrofit | Do not reuse voice cable for data |
Standards and Verification
| The reference | The relevance |
|---|---|
| IEC 60603-7 | The 8-position interface |
| Registered jack designations | The 6-position family |
| Continuity test | Confirms which contacts are wired |
Per-product labelling is not provided in the knowledge base. Count the positions on the plug rather than trusting the name on the packaging.
Real-World Applications
The alarm panel
A control panel wired with RJ12: six-position plugs and a dedicated cable – kept separate from the data cabling so a network change cannot disturb the alarm.
The forced plug
An RJ12 plug pushed into an RJ45 jack: two contacts bent and the port unusable. The jack replaced – the outlets relabelled so the mistake could not repeat.
The voice-cable retrofit
Voice service carried on spare Cat5e pairs in a retrofit: working, but undocumented. A dedicated voice panel added at the next change – the data cable returned to data.
Related reading: The voice panel these plugs land on — blogs/news/phone-patch-panel
Related reading: The legacy cable that precedes both — blogs/news/cat3-vs-cat5
Frequently Asked Questions
Can I plug RJ12 into RJ45?
Physically it may enter partway but will not latch, and forcing it can bend contacts.
Is RJ11 the same as RJ12?
Related but not identical – both are six-position; RJ12 typically uses all six contacts.
Can I run ethernet over RJ12 cable?
Not reliably – the pair count and category are wrong for data.
How do I tell them apart?
Count the positions: six for RJ12/RJ11, eight for RJ45.
