Quick Answer / Summary: Specify a data center patch panel by fiber type and connector, port density, cassette or fixed-adapter design, labeling scheme, cable management and mounting depth. Plan for the highest density you expect within the rack’s life, and standardise cassettes across the estate.
A patch panel looks like a passive metal box, but it decides how a rack is patched, labelled and maintained for a decade. Buying on port count alone usually produces a rack that works on day one and becomes unmanageable at the first change.
Port count is the easiest thing to specify and the least important.Density and the Cassette Decision

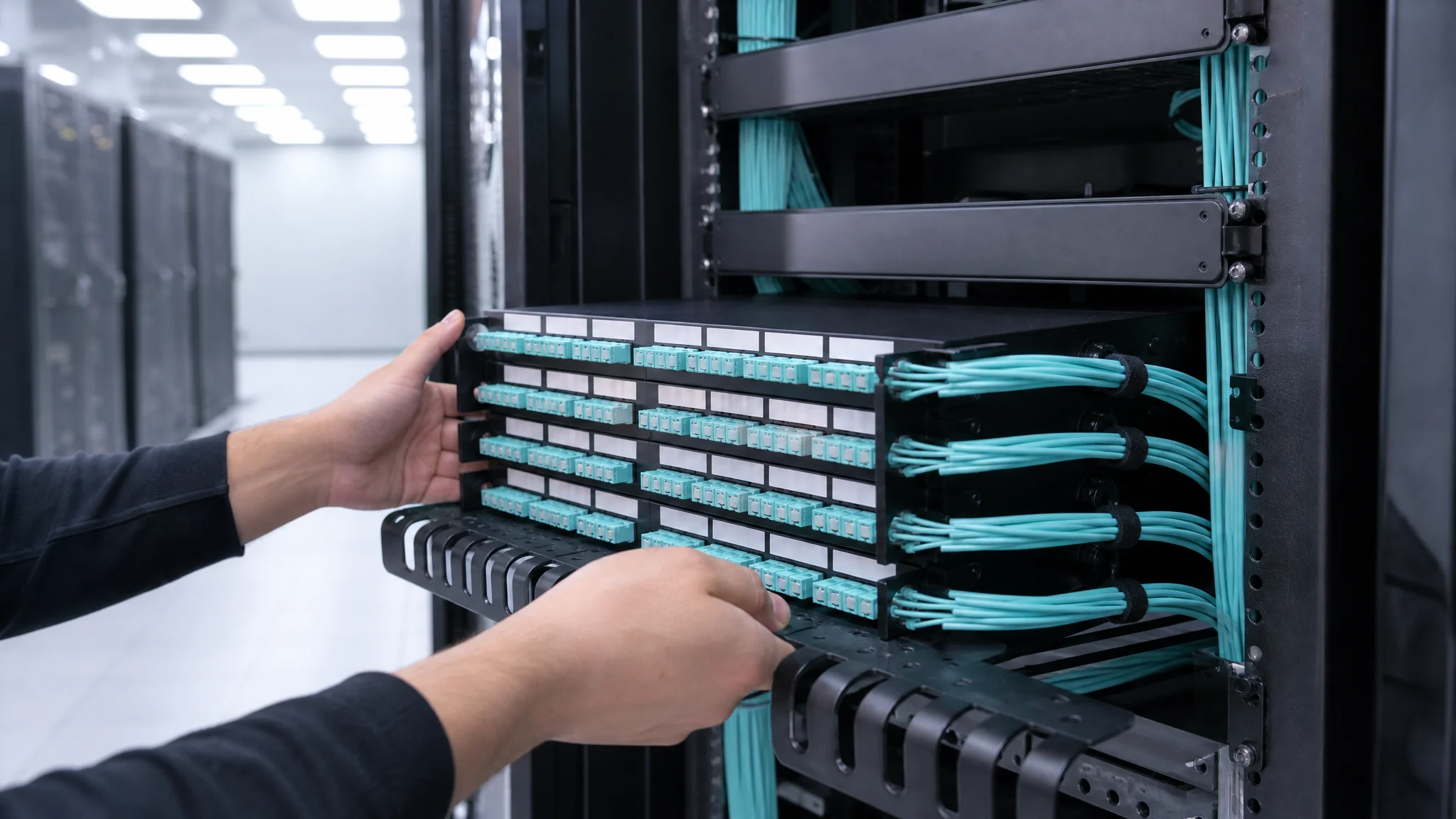

Density is a cost decision as much as a rack-space decision. Higher density usually means MPO cassettes rather than individual LC adapters.
MPO cassettes
A cassette converts an MPO trunk into LC ports, which allows high port counts in one unit. The trade-off is that polarity and fiber mapping now sit inside a replaceable module, so cassette consistency across the estate becomes a maintenance requirement.
Fixed adapters
Fixed LC adapters are simpler and cheaper per port, and easier to trace. They suit lower densities and environments where changes are infrequent.
Labeling and Documentation
The panel is where labeling either works or fails. A scheme that requires a lookup table will not survive staff changes.
Port labeling
Label every port with the destination, not only the port number. Destination labeling turns patching into reading and removes the most common source of misconnection during an incident.
As-built records
Keep a port map per panel and update it when patching changes. The panel is only as useful as the record that describes it, and the record is usually the part that is missing.
Cable Management and Bend Radius
Panels fail operationally when cable management is inadequate, not when the metal is thin.
Front and rear management
Specify vertical managers, slack storage and the minimum bend radius for the fiber type. A panel that forces a tight bend at the rear will produce loss and eventually break fiber.
Serviceability
Ask how a cassette or adapter is replaced with the panel in place. A design that requires removing the whole panel for a single port repair will be avoided by technicians, which means it will not be maintained.
Mechanical and Commercial Points
The remaining decisions are mechanical and commercial, and they are the ones most often skipped in a quotation.
Depth and mounting
Confirm the panel depth against the rack and the door clearance, and whether it mounts in the front or mid-rack. Depth conflicts are discovered during installation, when the rack is already populated.
Standardisation
Standardise on one or two panel and cassette types across the estate. Mixed types multiply spare parts and make a cross-rack repair dependent on the right module being in stock.
Data Center Patch Panel Specification
| Parameter | Options | What to decide |
|---|
| Connector | LC or MPO | Match the trunk and the optics |
| Density | Ports per unit | Plan for the highest expected density |
| Module | Cassette or fixed adapter | Consistency across the estate |
| Labeling | Port or destination | Destination labeling preferred |
| Management | Front and rear | Bend radius and slack storage |
| Depth | Rack and door clearance | Confirm before ordering |
Practical Applications
Patch panels are specified for data halls, edge sites, colocation cages and building distribution frames. Density decisions matter most in high-port-count fabrics, while labeling and serviceability matter most in sites with frequent moves and changes. Buy one spare cassette or adapter module for every two panels installed. Modules fail rarely, but when one does it takes several ports offline at once, and the replacement lead time is measured in weeks rather than hours. A spare on the shelf converts a multi-port outage into a ten-minute swap. Ask whether the panel is supplied with a port map template. A template that matches the physical port layout saves hours during commissioning and makes the as-built record accurate from the first day. Panels that arrive without one are usually documented late, and late documentation is the reason a well-designed rack becomes difficult to maintain two years later. Ask for the panel’s compatible cassette or adapter part numbers in the quotation, not in a separate catalogue. A panel quoted without its modules is an incomplete bill of materials, and the missing part is usually the one with the long lead time. Ask how the panel is shipped, because a heavy loaded panel can arrive distorted. Packaging that supports the chassis rather than the faceplate prevents a bend that is invisible until the modules will not seat, and by then the return window is often closed.
Reviewed by ZONG Cable Editorial | Last updated: 3 November 2026 | Reviewed against TIA-568 structured cabling practice and ISO/IEC 11801 fiber channel requirements.
How this guide was built: Specification points follow structured cabling practice for fiber panels: connector and density planning, cassette versus fixed adapter trade-offs, destination labeling, bend radius and serviceability, and documentation of the port map.
Disclosure: We do not supply patch panels. Confirm depth, cassette type and labeling standard before ordering.
Frequently Asked Questions
Should I use MPO cassettes or LC adapters?
Cassettes for high density, fixed adapters for lower density and simpler traceability. Standardise across the estate either way.
Why label destinations instead of port numbers?
Destination labels let a technician patch correctly without a lookup, which reduces errors during incidents.
Does panel depth matter?
Yes. Depth conflicts with racks, doors and cable managers are found during installation, when changes are expensive.
How many spare cassettes should I keep?
At least one per type in use, plus one per high-risk rack, because a failed cassette can take multiple ports offline.
What documentation should accompany a panel?
A port map, the polarity method, and the cassette or adapter part numbers.
