Is Cat6 Shielded: The Default and the Variant
Quick answer / TL;DR: Short answer: standard Cat6 is unshielded (U/UTP). Shielded Cat6 exists as F/UTP (FTP) – the same category with an overall foil and drain wire – and is a separate product line. Tell them apart by the jacket print (F/UTP or FTP versus U/UTP), the drain wire at the cut end, and the datasheet's construction line.
Cat6 is a category, not a construction: the standard defines the performance, and manufacturers build it both unshielded (U/UTP) and shielded (F/UTP). The default in most catalogues is unshielded, which is why 'is Cat6 shielded' has a two-part answer – usually not, and here is how to check.
This is the identification guide: the default, the variant, and the three checks that settle it before the order.

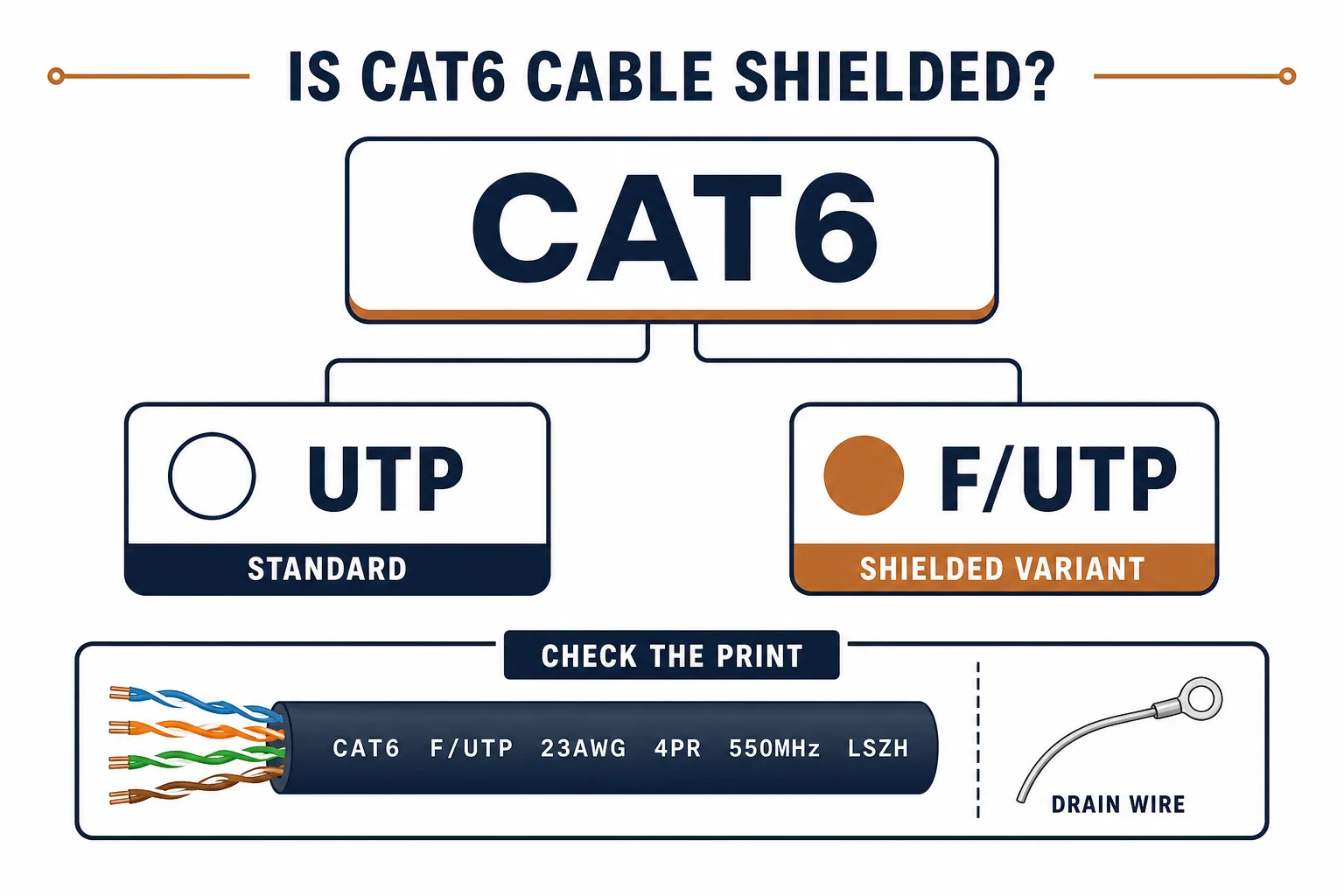

The Default and the Variant
| The product | The construction | The typical listing |
|---|---|---|
| Cat6 (standard) | U/UTP – no shield | The catalogue default |
| Cat6 FTP | F/UTP – overall foil plus drain | A separate SKU |
| Cat6 S/FTP | Braid plus pair foils | The industrial variant |
The category row is identical in all three; the construction row is the purchase. A quote that says only 'Cat6' has not answered the question.
The Three Checks
- Jacket print: U/UTP, F/UTP, or S/FTP – printed along the cable
- Cut end: a foil layer and a bare drain wire mean shielded
- Datasheet: the construction line names the code and the shield material
The checks work in reverse order of convenience: the datasheet before ordering, the print on delivery, the cut end at installation.
What Changes With the Shield
| The aspect | Unshielded Cat6 | Shielded Cat6 (FTP) |
|---|---|---|
| Grounding | None | Required at the panel |
| Diameter | Smaller | Larger |
| Termination | Simpler | Foil and drain care |
| Price | Baseline | Premium |
Standards and Verification
| The reference | The relevance |
|---|---|
| TIA-568.2-D | Cat6 requirements and shielded practice |
| ISO/IEC 11801-1 | Screening classes |
| IEC 61156 | Construction definitions |
Per-SKU constructions are not provided in the knowledge base. The default and the variant are standard market practice; confirm the code on the jacket and datasheet.
Real-World Applications
The catalogue order
A buyer ordering 'Cat6 305m' and receiving U/UTP where the site needed shielding: the construction line added to the next order – F/UTP, stated.
The delivery check
A pallet arriving with F/UTP printed on the jacket: the print checked against the purchase order before acceptance – the variant confirmed.
The plant-room retrofit
An unshielded Cat6 run failing beside drives: the FTP variant pulled for that segment – the same category, the added shield.
Related reading: The legacy category question? Read is Cat5e shielded — blogs/news/is-cat5e-shielded
Related reading: The screening families? Read what is shielded cable — blogs/news/what-is-shielded-cable
Frequently Asked Questions
Is Cat6 cable shielded by default?
No – standard Cat6 is U/UTP (unshielded). Shielded Cat6 exists as a separate FTP (F/UTP) product.
How can I tell if Cat6 is shielded?
Read the jacket print (F/UTP or FTP versus U/UTP), check for a foil layer and drain wire at the cut end, and confirm the construction line on the datasheet.
Do I need shielded Cat6?
Only where interference, shared power paths, or the specification demand it. Otherwise UTP is simpler and sufficient.
Which is more expensive?
Shielded Cat6 costs more per meter and adds grounded components and installation care – the installed cost is the comparison.
