Quick Answer / Summary: Read an HDMI 2.1 report in four steps: confirm the tested bandwidth (up to 48 Gbps), the cable length and construction, the tester model and calibration, and the measured margin or eye diagram. A report without those details cannot support a certification claim or a warranty claim.
An HDMI 2.1 test report is only useful if it names the bandwidth, the length and the instrument. Many reports show a pass mark and nothing else, which tells you the tester was satisfied but not what was tested. The details are what make a report usable in a purchase decision or a dispute.
A pass is the headline; bandwidth, length and margin are the story.Bandwidth, Length and Construction
The first page should define the product and the test condition. Without that, the result cannot be compared with anything.
Bandwidth tested
A 48 Gbps claim requires testing at the data rates that make up that bandwidth, not just at 4K60. Ask which formats were exercised and at what rate, because a cable that passes 18 Gbps is not evidence for 48 Gbps.
Length and construction
Results apply to the tested length and to passive or active construction. A 1 m passive result says little about a 5 m passive cable, and nothing about an active optical product in the same family.
Instrument and Calibration
Test results inherit the credibility of the instrument. A calibrated analyzer produces a result that can be defended; an uncalibrated one produces an opinion.
Model and calibration date
Check the analyzer model, its bandwidth capability and the calibration date. Ask for the calibration certificate if the report does not show a date, and confirm the fixtures match the connector type being tested.
Fixtures and setup
High-bandwidth testing depends on the fixtures and the reference setup. A report that does not describe the setup cannot be reproduced, and an unreproducible result is difficult to rely on when a batch later fails.
Eye Diagram and Margin

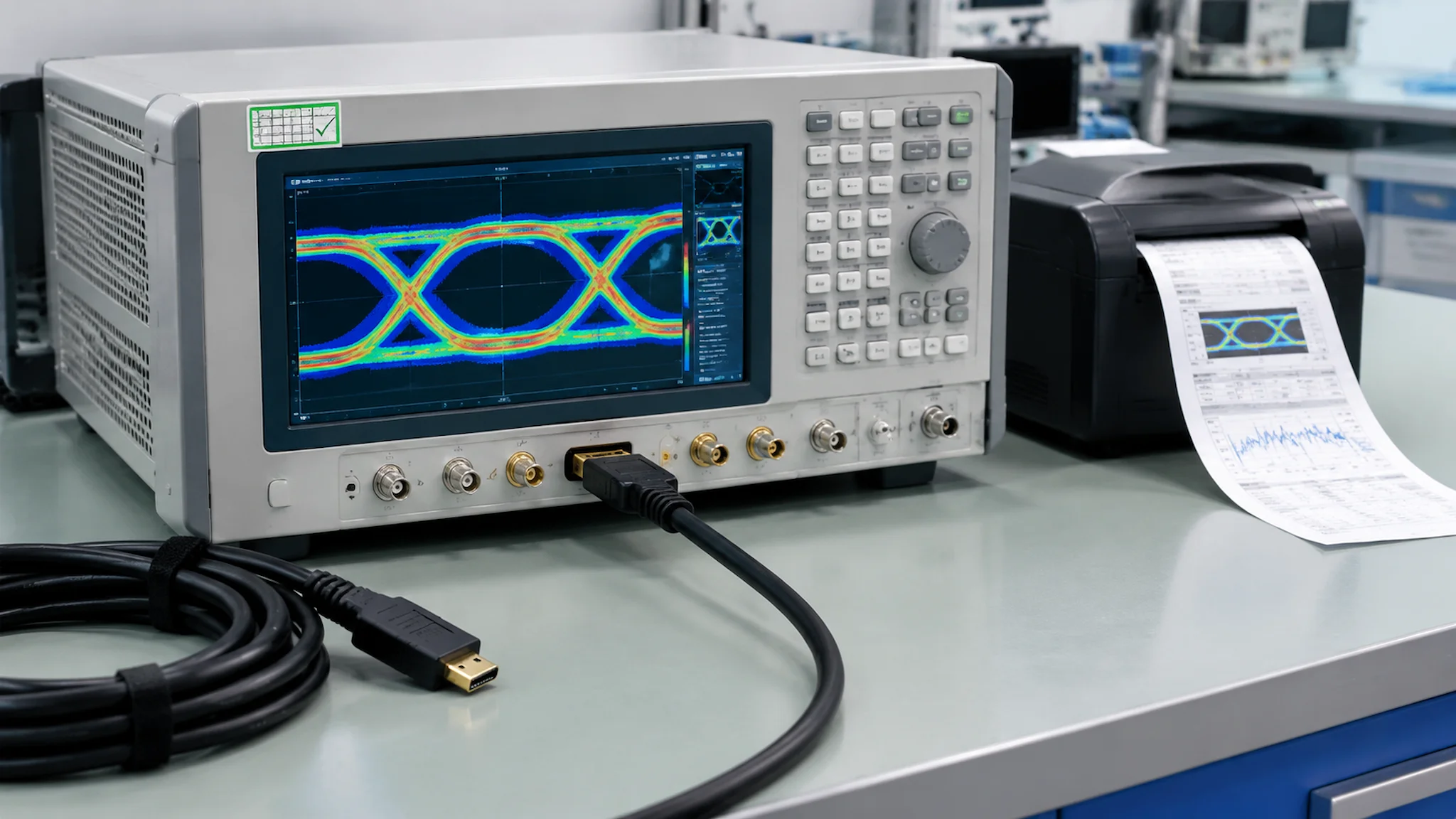

A pass is binary; margin is informative. An eye diagram showing a healthy opening at the tested length tells you how much headroom exists before installation losses push the link over.
Reading the eye
Look at the opening height and width relative to the mask, not just whether it passes. A cable that passes with a narrow margin may fail once connectors, wall plates or a coupler are added to the run.
Failures and retests
Ask for the failure log as well as the passing results. A supplier that reports only passes is either very consistent or not reporting, and the second is more common.
Using the Report Commercially
The report has a second life after purchase, when a batch fails and someone needs to know whether the product ever met the claim.
Tie it to the batch
Ask that reports reference the model, length and production batch, and keep them with the purchase order. A report that cannot be linked to a carton cannot support a claim.
What to accept from a factory
A factory report is evidence about the factory’s samples, not about every unit. Pair it with incoming spot checks on the delivered batch, especially for connector quality, which the report does not measure.
HDMI 2.1 Test Report Checklist
| Item | What to look for | Why it matters |
|---|
| Bandwidth | Tested rates up to 48 Gbps | Confirms the claim being made |
| Length | Tested length stated | Results do not scale with length |
| Construction | Passive or active stated | Different technologies, different limits |
| Instrument | Model and calibration date | Makes the result defensible |
| Margin | Eye opening, not just pass | Shows real headroom |
| Batch | Model, length and batch reference | Links report to delivered goods |
Practical Applications
Report reading matters at supplier qualification, at incoming inspection and during a dispute over a failed batch. It also matters when a customer asks for evidence, because the brand owner usually has to produce documents the factory holds. Where a supplier cannot provide a full report, ask for the raw tester export instead. A native file can be re-read and compared with a later batch, while a summary PDF usually cannot, and the difference matters when a dispute turns on whether the product changed. Ask the lab or factory to include the cable serial or spool reference in the report header. That one field links the result to a physical object and turns the report from a marketing document into an inspection record you can use in a claim. If the supplier cannot supply a report at all, ask whether they will accept a third-party test at your cost before the order. A supplier who refuses an independent test while claiming 48 Gbps is telling you something about the claim, and it is cheaper to learn that before the cartons are on a ship.
Reviewed by ZONG Cable Editorial | Last updated: 1 November 2026 | Reviewed against HDMI 2.1 (48 Gbps), HDCP 2.2/2.3 and the Ultra High Speed certification program.
How this guide was built: Report reading follows the HDMI 2.1 bandwidth structure and standard signal-integrity practice: tested rate, length, construction, instrument calibration and eye margin. Batch linkage is treated as a separate requirement from the test result.
Disclosure: We do not perform certification testing. Use a qualified lab with current calibration for acceptance testing.
Frequently Asked Questions
What does an HDMI 2.1 test report prove?
That the tested sample met the stated bandwidth at the stated length with the stated instrument. It does not prove every unit in the batch.
Is a 4K60 test enough for a 48 Gbps claim?
No. 4K60 sits well below the full bandwidth, so a pass at that rate does not demonstrate 48 Gbps capability.
Do I need the eye diagram?
It is the most informative part of the report, because it shows margin rather than a binary pass.
Should I accept a report without a calibration date?
Ask for the certificate. A report without a calibration reference is weaker evidence, particularly for high-bandwidth claims.
How often should production be tested?
Ask the factory. Certification covers samples; production consistency depends on routine testing and process control.
