Quick Answer / Summary: Custom made cable follows six steps: requirement definition, drawing and BOM, quotation and tooling decision, first article, test and approval, then production release. Approve a first article against a written drawing before releasing volume, and keep the approved sample sealed.
Custom made cable projects rarely fail at production. They fail earlier, at a requirement that was never written down or a drawing that was approved without being read. The process has six steps, and three of them belong to the buyer.
Three of the six steps belong to the buyer, not the factory.Step One: Write the Requirement
The requirement is the buyer’s document, not the factory’s. It describes the environment and the failure the cable must avoid, which is different from describing the cable.
Environment first
Temperature, flexing, chemicals, UV, indoor or plenum, and whether the cable moves. These decide jacket compound, conductor stranding and bend radius, and they are much harder to change later than a connector.
Then the electrical target
Category or fiber type, bandwidth or loss budget, and the test that will prove it. A requirement that names the test is easier to accept or reject than one that names only a product family.
Step Two: Drawing and Bill of Materials
The factory converts the requirement into a drawing. The buyer’s job is to read it, because the drawing is what will be built.
What to check on the drawing
Length and tolerance, connector at each end, breakout positions, labeling and any bend constraint. Check that the length dimension is the one you measured, not the one that is convenient for the factory.
What to check in the BOM
Named cable and connector parts, jacket compound, and any overmould or boot material. Ask for the part numbers, then confirm that the parts are available in the quantity you need.
Step Three: Quotation and Tooling

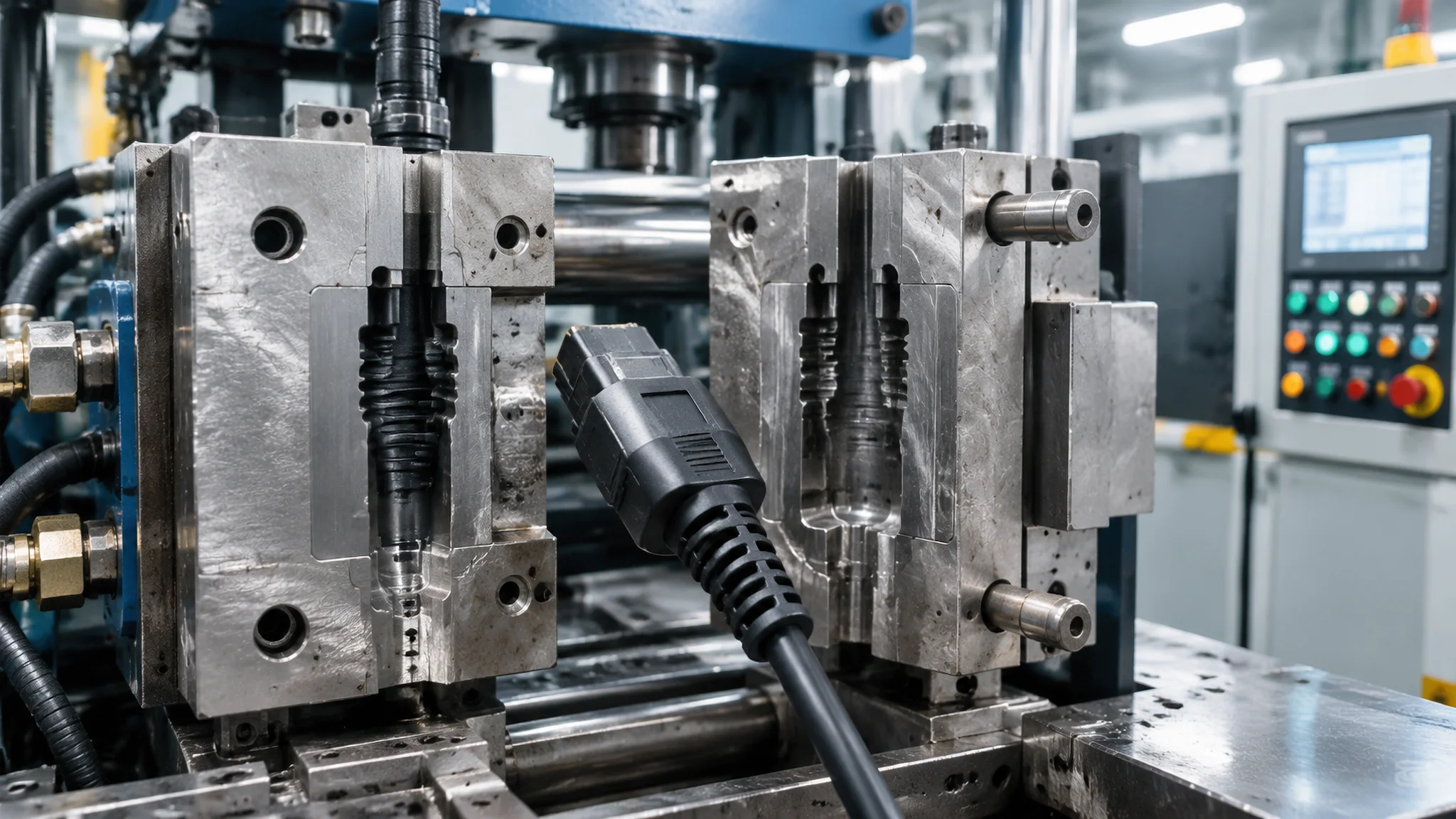

Tooling is the step most often skipped in a hurry. A mould or fixture created for your assembly has an owner, a cost and a location.
Tooling decisions
Decide whether tooling is charged once, amortised into the unit price or owned by the buyer. If you intend to qualify a second source, buyer-owned tooling is the only arrangement that lets the design travel.
Quotation comparison
Compare quotes on drawing, BOM, test scope, tooling, MOQ and lead-time start point. A lower unit price with a narrower test scope is not a lower price; it is a different product.
Steps Four to Six: First Article, Test, Release
The first article is the cheapest inspection in the project and the most frequently skipped.
First article inspection
Measure the length, inspect the termination, verify labels and run the specified test. Compare the result with the drawing, then sign and date the sample and keep it sealed. That sample becomes the reference for every later batch.
Production release and change control
Release volume only after the first article passes. Require written approval for any change in cable, connector or process, and re-inspect if a change occurs, because a silent substitution is the most common way a compliant product becomes a non-compliant one.
Custom Made Cable Process
| Step | Owner | Output | Checkpoint |
|---|
| Requirement | Buyer | Environment and electrical target | Test named in writing |
| Drawing and BOM | Factory | Build document | Buyer reads and approves |
| Quotation and tooling | Both | Price and tooling ownership | Tooling owner recorded |
| First article | Factory | Sample assembly | Measured and tested |
| Test and approval | Both | Report and sealed sample | Signed and dated |
| Production release | Buyer | Volume order | Change control clause active |
Practical Applications
Custom made cables are ordered for industrial machines, data center build-outs, medical devices, broadcast installations and laboratory fixtures. In each case the process is the same, and the buyer owns the first and last steps. Keep the approved drawing, the first-article measurements and the sealed sample together in one file per part number. When a batch arrives two years later, that file is what allows an incoming inspection to be meaningful rather than a visual glance. It also shortens the conversation with a new supplier, because the drawing and the measurements describe the part more precisely than any description written from memory. For repeat builds, keep the requirement document, the drawing and the first-article report in one revision-controlled file. The next order then starts from a known state rather than from a conversation, and a new supplier can be briefed in an hour instead of a week. This is the single practice that most reduces the cost of switching factories later. Write the acceptance criteria into the purchase order rather than into an email thread. Criteria that live in email are easy to reinterpret when a batch is late, while criteria in the order are the reference both sides agreed to before the pressure arrived.
Reviewed by ZONG Cable Editorial | Last updated: 3 November 2026 | Reviewed against TIA-568 structured cabling practice and ISO/IEC 11801 fiber channel requirements.
How this guide was built: Process guidance follows build-to-print practice: requirement, drawing and BOM, tooling decision, first article inspection, test approval and production release with change control. Test criteria are named per project rather than assumed.
Disclosure: We do not manufacture cable. Require a first article and a sealed approval sample for any new design.
