Quick Answer / Summary: Order custom fiber patch cables by polarity method, fiber type, connector and polish, exact lengths, jacket and boot colours, and labeling. Require insertion loss and return loss per cable, and keep the colour scheme documented so replacements match.
Patch cables are the cheapest item in a fiber link and the most common cause of a link that fails. Custom patch cables add length control and colour coding to that equation, which is exactly where most patching errors are prevented.

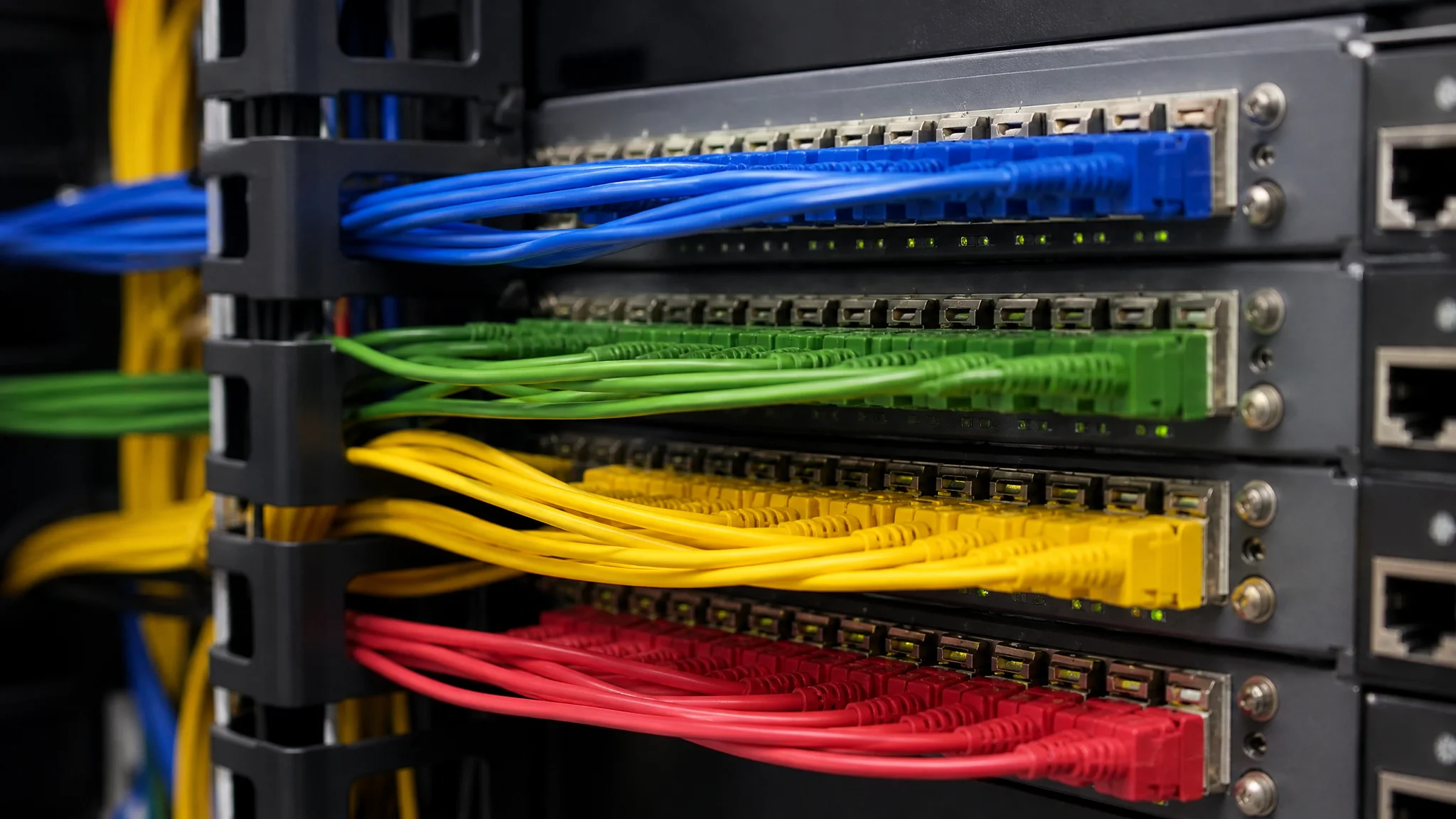

Colour and length control prevent most patching errors.Polarity Decides Whether It Works
A duplex patch cable can be wired in more than one way. The method must match the rest of the channel, not just the cable.
Method consistency
Choose a polarity method and apply it across trunks, cassettes and patch cords. Mixing methods produces a link that passes a single-cable test and fails end to end.
Marking
Ask for a marking that identifies the method, or keep the method in the part number. Without it, a replacement cable bought six months later may be wired differently.
Colour Coding That Survives Staff Changes
Colour is a documentation tool. Its value depends on a scheme that is written down and used consistently across sites.
Jacket and boot colours
Use one colour per tier, tenant or speed class, and document it. Boot colour can differ from jacket colour to identify the same link at both ends.
Labeling
Add a printed label or a coloured marker where the scheme alone is ambiguous. Labels are cheap; a mis-patched port during an incident is not.
Lengths and Handling
Patch cable length affects both tidiness and loss. Longer than needed adds coil; shorter than needed strains the connector.
Length increments
Order in defined increments that match the rack geometry, and keep the range small. A rack stocked with three lengths is easier to maintain than one stocked with seven.
Bend radius
Ask for the minimum bend radius and train installers on it. Patch cables are frequently bent tighter than the fiber allows when dressing a rack.
Testing and Replacement
Patch cables are tested individually because a single bad cable can waste hours of diagnosis.
Per-cable tests
Require insertion loss and return loss per cable, plus an end-face inspection. For high-volume orders, agree a sampling plan rather than assuming every cable is tested.
Spares and batch
Keep spares from the same batch and record the batch. If a cable fails, a replacement from the same batch is easier to compare and to claim against.
Custom Patch Cable Order Sheet
| Item | What to specify | Why |
|---|
| Polarity | Method and marking | Channel works end to end |
| Fiber type | OS2, OM4 or OM5 | Transceiver compatibility |
| Connector | LC, SC or MPO with polish | Mating and loss |
| Length | Increment and tolerance | Fit and tidiness |
| Colour | Jacket and boot scheme | Identification at both ends |
| Test | IL and RL per cable | Proves performance |
Practical Applications
Custom patch cables are used in data center patching, broadcast and post-production racks, lab environments and any site with a colour-coding standard. They are also used to correct length problems in cabinets where standard lengths leave coils. Standardise the patch cable range to three or four lengths per rack type and keep the colour scheme identical across sites. A narrow range makes stocking simple and makes a replacement obvious during an incident, when nobody wants to search a shelf for the exact length and colour combination that the documentation promised. Ask the supplier to include a few extra cables in the neutral colour at no charge for the first order. Neutral spares are used during installation for temporary links and for replacing a failed cable while a coloured replacement is ordered. The cost is trivial and it removes a common reason for a rack to run with a mismatched cable for months. Ask for the patch cable test data by batch rather than per unit for large orders, and agree a sampling plan in writing. A defined plan is auditable; an undefined one becomes a negotiation at the first failure. Ask for the patch cable’s insertion loss value rather than only a pass, and keep the distribution across the batch. A batch that passes with a narrow margin is a warning about connector quality even when every cable complies, and the distribution is the early signal. Keep the distribution with the batch record, because a future batch that passes with a narrower margin is easier to detect when there is a baseline to compare against, and the comparison takes minutes rather than a re-test.
Reviewed by ZONG Cable Editorial | Last updated: 3 November 2026 | Reviewed against TIA-568 structured cabling practice and ISO/IEC 11801 fiber channel requirements.
How this guide was built: Patch cable guidance follows structured cabling practice: polarity method consistency, documented colour scheme, defined length increments, minimum bend radius and per-cable insertion and return loss testing.
Disclosure: We do not supply patch cables. Keep the colour and polarity scheme documented for future replacements.
Frequently Asked Questions
Why order custom patch cables instead of stock lengths?
Exact lengths improve airflow and tidiness, and colour plus length control reduces patching errors. The cost premium is small at volume.
What polarity method should I use?
Whichever matches the rest of the channel. Consistency matters more than the specific method.
Are custom patch cables tested?
They should be, per cable or by agreed sampling. Ask for insertion and return loss results and the sampling plan.
Can I mix jacket and boot colours?
Yes, and it is useful for identifying the same link at both ends. Document the scheme.
How many spares should I keep?
Enough to cover the highest-risk rack plus one per colour and length in use.
