Quick Answer / Summary: Order custom fiber assemblies by stating fiber type, connector and polish, polarity method, breakout mapping, loss budget and test scope. Require per-leg insertion loss and return loss results, and keep one spare assembly per length on site.
A custom fiber assembly is bought against a loss budget, not a tape measure. Two assemblies of the same length can differ by a connector grade, a polish and a fan-out method, and that difference decides whether a 400G link closes with margin or fails intermittently.
Order against a loss budget and a polarity table, not a length alone.The Four Choices That Set Performance
Fiber type, connector, polish and breakout decide almost all of the optical performance before length is even considered.
Fiber type
Single-mode OS2 for long reach, multimode OM4 or OM5 for short reach at high speed. The choice sets the wavelength, the loss per kilometre and the transceiver compatibility, so it belongs in the specification rather than in a conversation after the quote.
Connector and polish
LC and MPO dominate data centers. UPC polish is standard for multimode and most single-mode links; APC is used where return loss matters more. Mixing polish types at a mating pair destroys performance, so state both ends.
Polarity and Breakout Mapping
Polarity is the most common source of a fiber assembly that tests well on a bench and fails in a link. It has to be defined by method, not by intention.
Stating the method

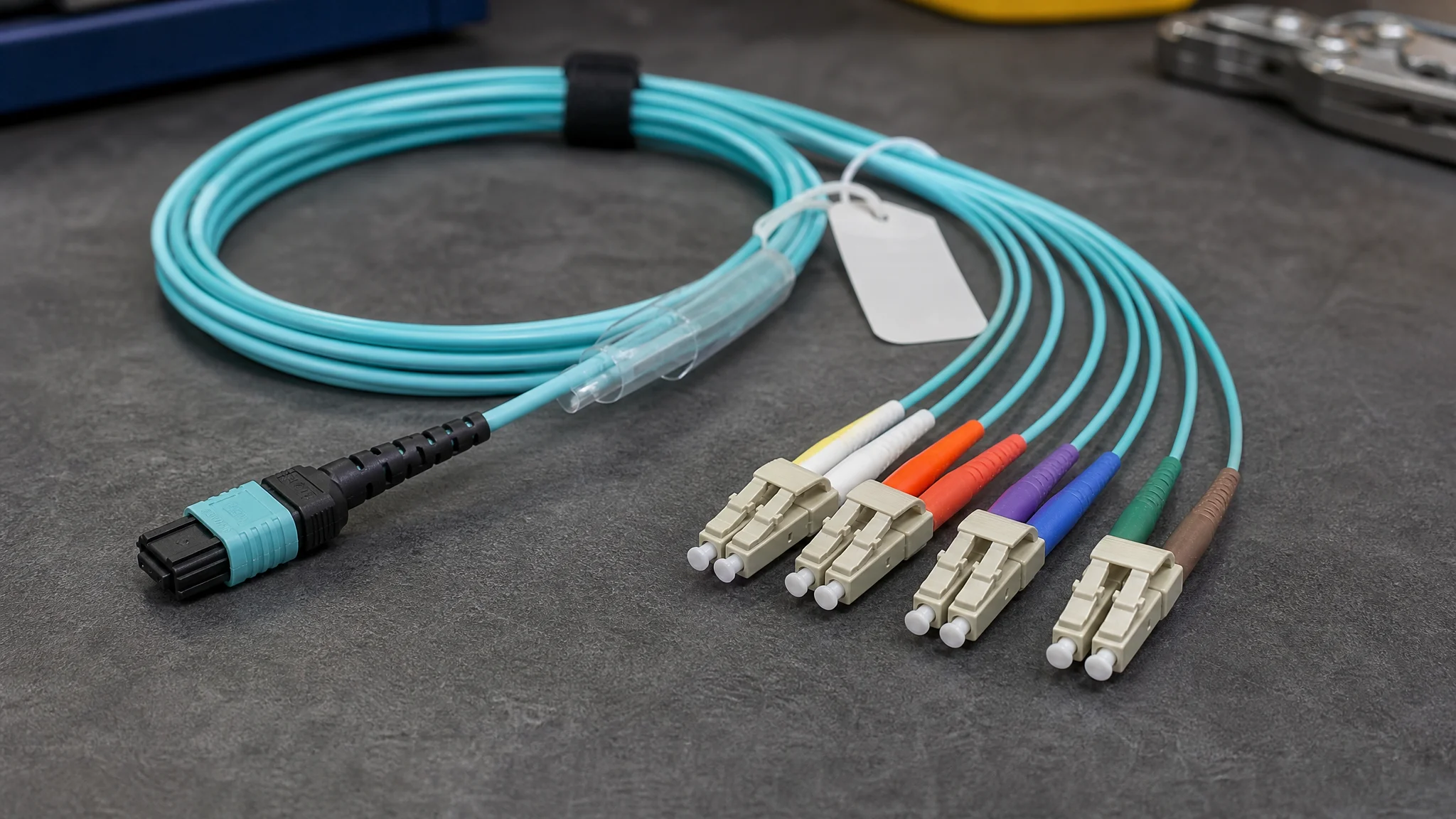

Name the polarity method and the mapping from trunk position to leg position. For an MPO-to-LC breakout, provide a table rather than a description, because a fan-out can be wired correctly in more than one pattern and only one matches the design.
Verification
Require a polarity check against the drawing and a report that lists each leg. This is a five-minute test at the factory and a multi-hour diagnosis in the rack.
Loss Budget and Test Report
A loss budget converts the assembly into a number that can be accepted or rejected. Without it, acceptance becomes a matter of opinion.
Building the budget
Add connector loss, splice loss if any, and fiber attenuation over the length. Then compare with the link budget of the transceiver, leaving margin for ageing and for patch cords added later. Ask the supplier to confirm the assembly meets the budget at the stated wavelength.
What the report should show
Per-leg insertion loss and return loss at the specified wavelength, measured with a calibrated instrument, plus the serial number of the assembly. A single aggregate figure for the whole assembly is not sufficient to diagnose a failing leg.
Ordering and Practical Logistics
Custom fiber assemblies have a longer lead time than patch cords and are harder to replace locally, which changes the ordering strategy.
Quantities and spares
Order one spare per length and keep it labeled with the assembly serial. A failed custom assembly can stop a rack for a week if there is no replacement, because a local patch cord will not have the right length or breakout.
Packing and handling
Ask for each assembly in its own protective bag with a minimum bend radius respected in the carton. Fiber assemblies fail from tight coiling and from crushed fan-outs more often than from optical defects.
Custom Fiber Assembly Order Sheet
| Item | What to state | Why it matters |
|---|
| Fiber type | OS2, OM4 or OM5 | Reach, wavelength and transceiver match |
| Connector | LC, MPO or SC, both ends | Mating compatibility |
| Polish | UPC or APC | Return loss and mating pair |
| Polarity | Method and mapping table | Link works at commissioning |
| Loss budget | Maximum insertion loss | Acceptance criterion |
| Test report | Per-leg IL and RL | Diagnosis and warranty evidence |
Practical Applications
Custom fiber assemblies are used in spine-leaf fabrics, storage networks, broadcast and post-production facilities, and any link where a pre-terminated assembly avoids field splicing. They are also common in Temporary or mobile deployments where speed of installation dominates. Keep a small library of approved assemblies with their measured loss values. When a new project needs a similar breakout, the library turns a fresh design into a variation, which cuts both engineering time and the risk of a polarity mistake. Assemblies that fail in service should be added to the same library with the failure mode noted, because a list of what went wrong is more useful during design than a list of what went right. For assemblies that will be installed by a subcontractor, include a one-page installation sheet with the drawing. The sheet should show the routing, the bend radius and the polarity orientation, because the people pulling the cable often never see the design file. Suppliers who provide this by default are usually the ones who have had a field failure and fixed the process rather than the invoice.
Reviewed by ZONG Cable Editorial | Last updated: 3 November 2026 | Reviewed against TIA-568 structured cabling practice and ISO/IEC 11801 fiber channel requirements.
How this guide was built: Guidance follows fiber optic test practice: insertion loss and return loss per leg at a stated wavelength, polarity verification against a mapping table, and loss budget comparison with transceiver capability.
Disclosure: We do not manufacture fiber assemblies. Require measured per-leg results with the assembly serial number.
Frequently Asked Questions
What is a custom fiber assembly?
A factory-terminated fiber cable built to a specified length, connector, polarity and breakout rather than supplied as a stock patch cord.
How do I specify loss?
State the maximum insertion loss per assembly or per leg at a named wavelength, and require a measured report rather than a typical value.
Why does polarity matter so much?
A polarity error passes continuity and fails the link. It is cheap to test at the factory and expensive to diagnose in a rack.
Can I use APC and UPC together?
No. Mating different polish types causes high loss and can damage the ferrule.
How many spares should I keep?
At least one per unique assembly. Custom lengths and breakouts cannot be replaced from local stock.
