The box arrives with everything you would want to see on it. A UL listing mark, an ETL verification legend, a claim of TIA-568 compliance, a part number that looks like a part number. The price was about half of what the last order cost, and the person who chose it is going to be congratulated for a week.
The problem is that none of those marks are necessarily real, and the cable underneath them may be aluminum with a thin copper coating rather than copper.
This is not hypothetical. Copper-clad aluminum — CCA — is a documented, persistent problem in the structured cabling market, and one of the few cases where the failure mode is not just a bad install but a code violation.
What the Standards Actually Say
There is a common assumption that CCA is simply a cheaper, lower-performance option — a trade-off to weigh. It is not a trade-off. It is non-compliant.
In the industry’s own language, CCA cables should not be called category cable, because they do not meet the standards that require solid copper conductors for multi-conductor communications cable. That list, as the Communications Cable and Connectivity Association states it, includes the National Electrical Code, UL 444, CSA 22.2, TIA-568-C.2 and ISO/IEC 11801 edition 2.2.
The consequence is specific and commercial. Cables made with CCA conductors do not have a valid safety listing per the NEC, and cannot legally be installed into areas of buildings that require CM, CMG, CMX, CMR or CMP rated cables. Any installation behind a wall or in an enclosed space is likely to be a code violation in every jurisdiction in the country, and depending on the jurisdiction, violating building codes can carry significant fines or imprisonment.
So when a quote comes in at half price with a UL mark on the box, there are two possibilities, and only one is honest. Either the cable genuinely passed the testing, or it is counterfeit and the UL mark is unauthorized — which means the flame-spread testing that listing represents may not have happened either. The safety mark and the safety itself travel together.
Our own premise cable is supplied as solid bare copper under the communication cable range, and the conductor material is stated on the quality management documentation for each production lot.
The 55 Percent That Turns Into Heat
The electrical difference is simple to state and easy to underestimate.
The resistance of a solid aluminum conductor is about 55% greater than a copper conductor of the same diameter. Three independent sources state that figure, and it is worth sitting with what it means.
More resistance means more of the delivered power is lost as heat inside the jacket, and less voltage arrives at the device. Under Power over Ethernet that combination is exactly the wrong direction. The greater resistance results in greater heating of the cable and lower voltage available at the powered device — so the device may not receive what it needs, and the cable runs hotter while it fails to deliver.
The heat has a second consequence that people forget. Heat rise within cable bundles increases insertion loss, because signals attenuate more as temperature rises. A CCA cable is therefore not merely worse at carrying power; it gets worse at carrying data as it heats up.
This is where the standards are unusually good evidence, because they already account for heating in compliant cable. IEEE Std 802.3, Clause 33.1.4.1, states that Type 2 operation requires a 10 °C reduction in the maximum ambient operating temperature of the cable when all cable pairs are energized. That allowance was written for solid copper. As the CCCA points out, no allowance is made for the much greater heating that would occur in a CCA cable — so the compliance margin you were relying on is not there.
There is a mechanical cost too. CCA conductors are brittle and break easily during installation, and aluminum oxidizes, which leads to unreliable terminations and failures over time. A CCA job does not fail on day one. It fails at the terminations, quietly, over months.
The Test That Catches It, and the Test That Does Not
Here is the finding that surprises even experienced people: field testing a CCA cable to ANSI/TIA or ISO/IEC standards may not detect that it is CCA.
Testing to ANSI/TIA-568-C.2 is deferred to ANSI/TIA-1152, the requirements document for field test instruments, and DC resistance is not required to be included in a field test. The certification suite you paid for does not necessarily look at the parameter that would expose the conductor.
Even where a DC resistance limit exists, it can be passed. In one documented case, a Class D Channel Link under approximately 233 feet would almost certainly issue a pass, because the DC resistance test limit is fixed at 25 ohms regardless of the length of the channel. A short link simply does not accumulate enough resistance to trip a fixed limit, even on aluminum.
The obvious fix — pro-rate the limit by length — is impractical, because the measurement uncertainty attached to establishing length would increase the probability of failing links that are actually compliant.
What does work is a different parameter. DC Resistance Unbalance compares the resistance of the two conductors within a pair. When power is delivered, current splits between them; equal resistance means an even split and common-mode current. CCA does not behave this way — the variations in diameter, concentricity, contour and smoothness create a much higher risk of unbalance, which distorts the waveform of Ethernet data signals and produces greater bit errors, retransmits, and even non-functioning data links.
Fluke Networks’ field data is direct on this point: CCA cable fails DC Resistance Unbalance regardless of link length. It is not a length-dependent effect and it does not need a long run to show up.
One caveat to carry into the field: the standards do not offer the same coverage on this parameter. ISO/IEC 11801 provides DC Resistance Unbalance limits for both channel and permanent link definitions, while ANSI/TIA-568-C.2 provides limits for the channel definition only. The field test standard ANSI/TIA-1152 now includes DC Resistance Unbalance as a field test, but it is not a mandatory certification requirement — it has to be selected.
That is the single most actionable item in this article. If your tester can run DC Resistance Unbalance and it is not switched on, you are running a certification suite that can pass a cable made of the wrong metal.
Four Ways to Check, and What Each One Misses
Method | What it shows | What it misses |
|---|
Read the labeling and resolve the file number | Whether the UL or ETL reference is real and traceable | Counterfeit marks; requires looking the number up rather than reading the box |
|---|
Weigh the box | Aluminum is lighter, so a CCA box is often noticeably lighter | Ballast has been found added to boxes to mimic copper weight, and heavier CCA constructions approximate copper weight closely |
|---|
Cut and scrape the conductor | Silvery metal under the copper cladding confirms aluminum | Destructive, so it is only practical before installation; tinned conductors make the appearance test less reliable |
|---|
DC Resistance Unbalance test | CCA fails regardless of length | The parameter is not in every certification suite by default, and TIA limits cover the channel definition only |
|---|
Weighing is not foolproof, and the countermeasures are documented. Installers have reported finding ballast in cabling boxes so the box feels as heavy as copper, and heavier CCA variants approximate copper weight closely. Weight is a screen, not a verdict.

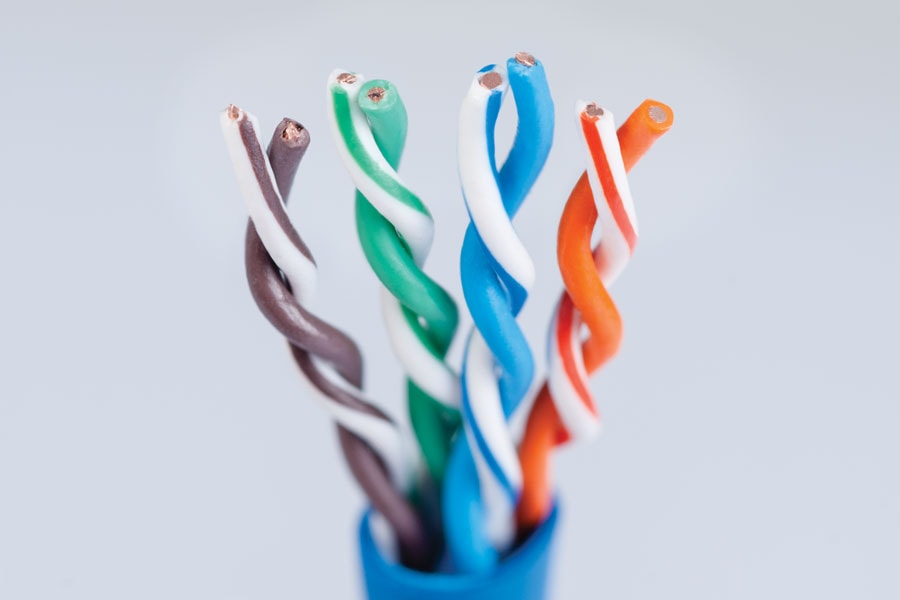

Scraping is the most conclusive physical check and the least convenient. Snip a section, scrape the copper layer away with a knife, and look for the silver color beneath. That is fine on a suspect new reel. It is not what you want to do on a cable already installed in a ceiling, and melting the conductor with a lighter has obvious safety and practical limits.
The practical sequence is therefore: resolve the listing number, weigh and scrape on a sample reel, and require DC Resistance Unbalance in the field test specification so the check happens on every link rather than on the one you happened to cut open.
What to Put in the Purchase Order
Four items, none of which a compliant manufacturer will have trouble with.
- The conductor material, stated in writing. Solid bare copper, named in the specification, not implied by a category claim.
- A UL or ETL file number that resolves. Not a logo image, not a certificate PDF. A number you can look up on the listing body’s own website against the cable type and the part number you are buying.
- DC resistance data per production lot, or per reel. This is the measurement that exposes the conductor, and it is the one a compliant factory already generates.
- DC Resistance Unbalance included in the field test specification, for every link, not on request. Where a project requires ISO/IEC test limits rather than TIA, note that you gain permanent link coverage as well.
Our own assemblies are verified through test and inspection with DC resistance and eye-pattern measurement as routine, and the certifications we hold are listed by standard and file reference. If you want a second opinion on a reel in hand, send us the details and we will tell you what to measure and what the result should read. The patch cord range is built on the same conductor specification, and Cat 6 premise cable is where the difference shows up first.
Frequently Asked Questions
Is CCA acceptable for anything?
There are applications where CCA is approved and suitable. The problem is the cases where it is not, and where it is nevertheless sold as category cable. Behind a wall, in a plenum or riser, or anywhere the NEC requires a fire rating, it is not one of those cases.
If the box has a UL mark, is the cable compliant?
Not necessarily. If the cable is made with CCA and claims standards compliance, it may be counterfeit cable, which means the UL mark is likely unauthorized. Resolve the file number against the listing body rather than trusting the artwork.
Why did my certification test pass a CCA cable?
Because DC resistance is not a required part of an ANSI/TIA field test, and where a fixed limit does apply, short links can pass it. Add DC Resistance Unbalance to the test specification — CCA fails it regardless of length.
Can I detect CCA without cutting the cable?
Weighing and reading the listing are non-destructive but imperfect, and both have documented countermeasures. DC Resistance Unbalance testing is the non-destructive electrical check that does not depend on the packaging being honest.
The Short Version
CCA is not a budget option, it is a compliance failure. It does not meet the NEC, UL 444, CSA 22.2, TIA-568 or ISO/IEC requirements that call for copper conductors, and it cannot be legally installed where a CM, CMR or CMP rating is required — which is most of the inside of a building.
Electrically, aluminum resistance runs about 55% above copper at the same diameter, which becomes heat, voltage drop, rising insertion loss and unreliable terminations — worst exactly where PoE is used. And the certification test you rely on may not catch it, because DC resistance is not a required field measurement while DC Resistance Unbalance, which CCA always fails, has to be switched on deliberately.
Specify the conductor in writing, resolve the listing number, ask for the resistance data, and turn on the unbalance test. The savings on the box are real. So is everything that comes after it.
