Cat7 Shielded: The S/FTP Question
Quick answer / TL;DR: Short answer: Cat7 is a shielded category built as S/FTP – foil per pair plus an overall braid – with performance above Cat6a but no widely adopted connector standard of its own (it typically uses GG45/TERA or RJ45-compatible builds). Buy it where the installation is fully shielded and specified; for offices and homes, Cat6a covers the same speeds with simpler components.
Cat7 is the shielded category most often bought by name and least often by specification: the standard defines an S/FTP construction – foil on each pair, braid overall – and its performance depends on the whole shield system being installed. This guide is the buyer's view.
This is the Cat7 guide: the construction, the use cases, the reason it is not an office default, and the order language.

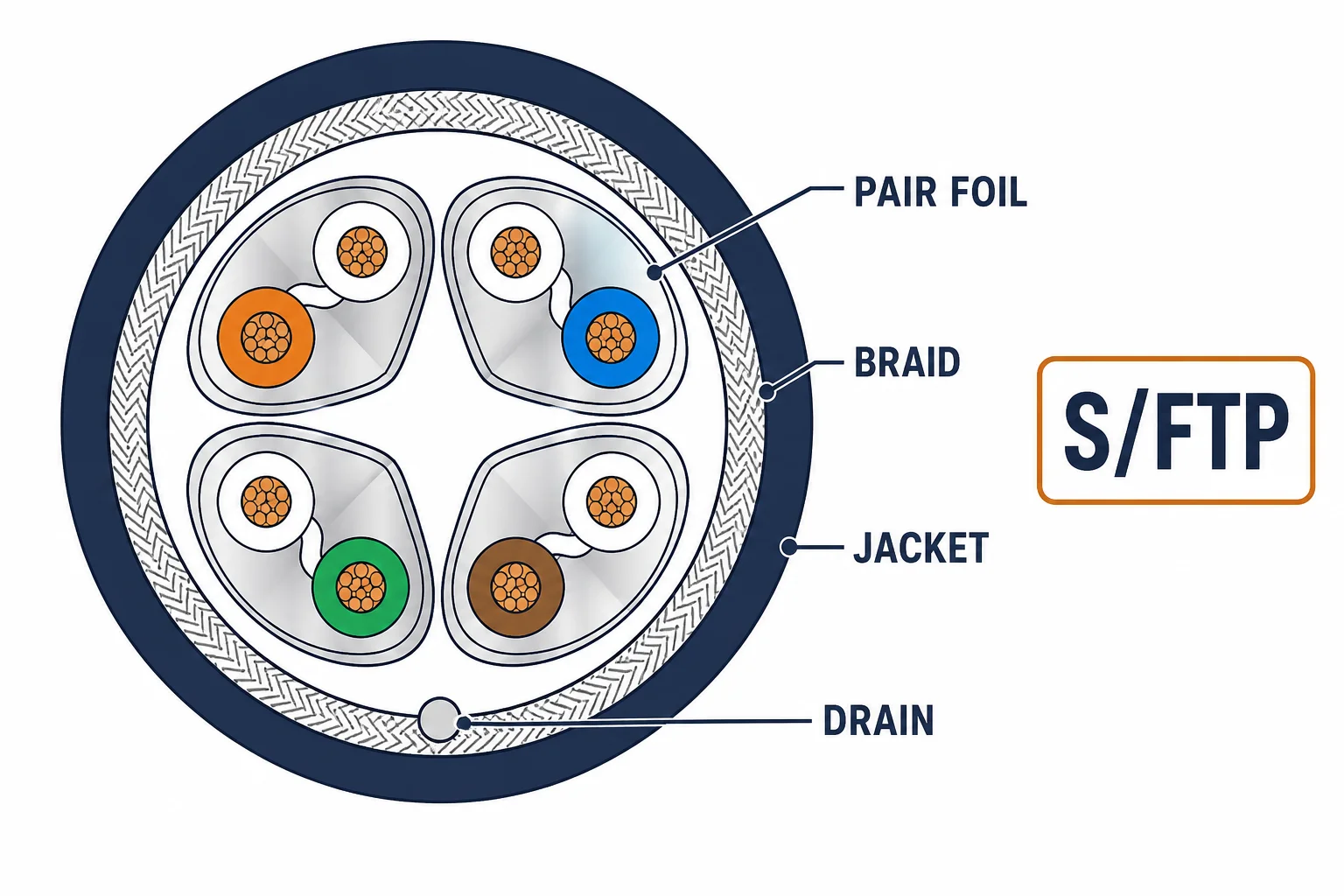

The Construction
| The layer | The function |
|---|---|
| Pair foil | Shields each pair from the others |
| Overall braid | Mechanical strength and low-frequency rejection |
| Drain | Bonds the shield to ground |
| Jacket | Protection and route rating |
The double shielding is the category's identity: more layers, more continuity work, stiffer cable, and a larger diameter.
Where It Is Used
- Industrial and broadcast environments with heavy interference
- Data-center links where the shield system is engineered
- Projects whose specification names Cat7 explicitly
- Not the typical office fit-out – Cat6a is the mainstream shielded choice
The use cases share a condition: the whole system is shielded and the installer is equipped for it. Cat7 in a partly shielded install is money spent on copper.
The Buying Specification
| The line | The example |
|---|---|
| Construction | S/FTP, 23 AWG |
| Connector | The specified interface – GG45/TERA or RJ45-compatible |
| Jack and panel | Shielded, matched to the connector |
| Grounding | Bonded per the design |
| Test | The channel test at the installed category |
Standards and Verification
| The reference | The relevance |
|---|---|
| ISO/IEC 11801 | Class F definitions for Cat7 |
| IEC 61156 | S/FTP construction |
| TIA-568.2-D | Installation and grounding practice |
Per-SKU connector compatibility is not provided in the knowledge base. The construction and class definitions are standard; confirm the connector interface and shield support before ordering.
Real-World Applications
The broadcast rack
A studio rack with heavy RF nearby: Cat7 S/FTP patch runs, shielded throughout – the interference handled at the construction level.
The specification-driven project
A tender naming Cat7: the connector interface confirmed before pricing – the bid based on the actual part, not the category name.
The office overbuy
Cat7 priced for a standard office: the comparison with Cat6a run – the same speeds, simpler components, lower total – the specification corrected.
Related reading: The component chain Cat7 needs? Read shielded system supply — blogs/news/shielded-system-supply
Related reading: The FTP construction comparison? Read the FTP primer — blogs/news/what-is-ftp-cat6
Frequently Asked Questions
What is Cat7 cable?
A shielded category built as S/FTP – foil on each pair plus an overall braid – defined in ISO/IEC 11801 as Class F.
Is Cat7 better than Cat6a?
On paper it has more headroom, but the practical difference is small for office speeds and the installation is more demanding. Cat6a is the mainstream shielded choice.
Do I need special connectors for Cat7?
It typically uses GG45/TERA or RJ45-compatible shielded builds – the interface must be specified. Standard unshielded jacks do not complete the system.
Is Cat7 worth it for home use?
Rarely – Cat6 or Cat6a covers home networking with simpler components and lower cost.
