Cat6 vs Cat6a RJ45 Connectors: Same Interface
Quick answer / TL;DR: Short answer: Cat6 and Cat6a RJ45 connectors are compatible at the interface – same 8P8C pinout, same jack – but differ in body: Cat6a connectors accept larger shielded cable and provide shield termination and grounding. Match the connector to the cable's construction, and use Cat6a-rated connectors with shielded Cat6a cable, or the channel fails its test.

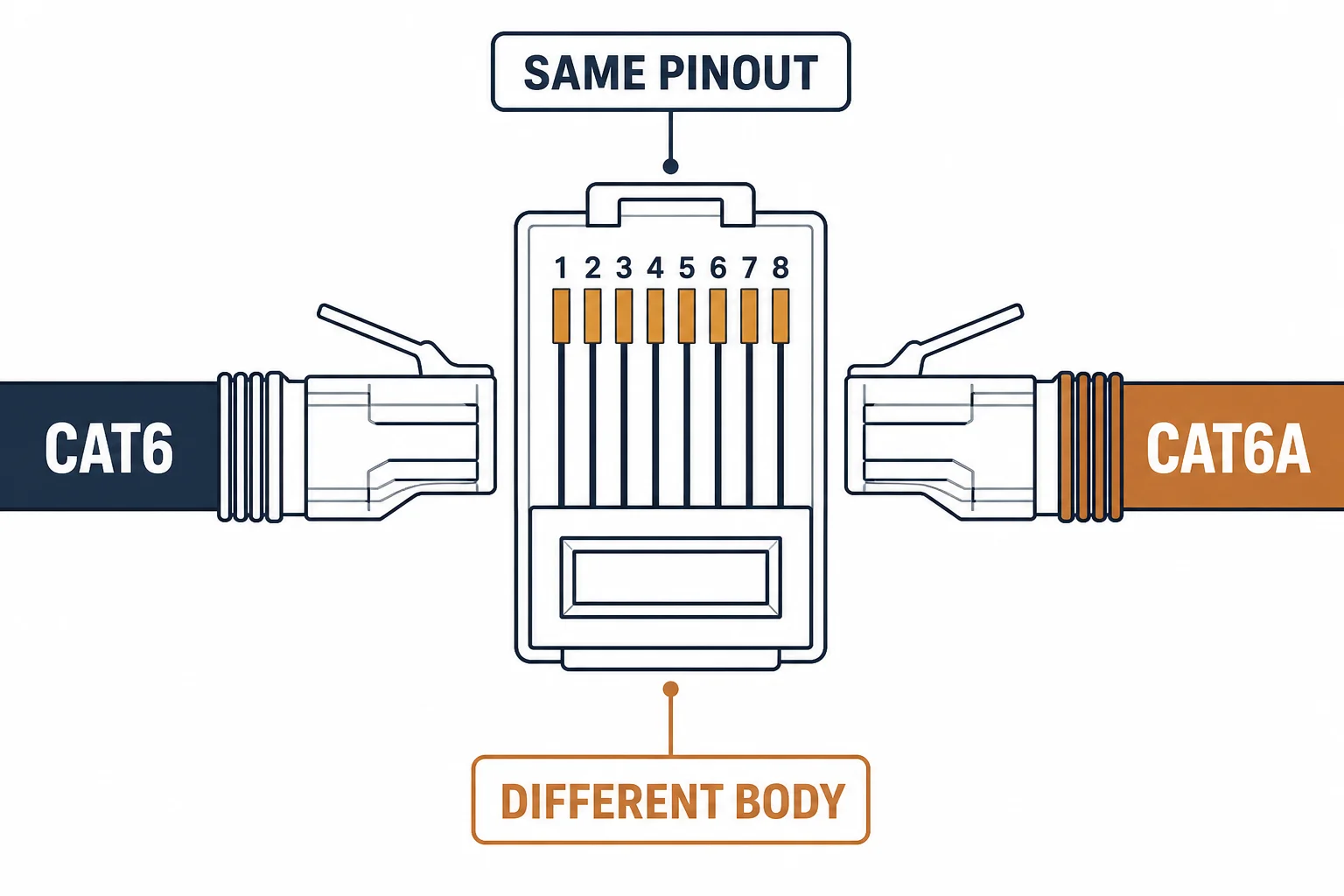

Cat6 and Cat6a connectors share the RJ45 interface – the plug fits the same jack, the pinout is the same – and they are not the same part. The Cat6a body is built for a larger, shielded cable: a wider entry, a shield contact, and grounding continuity. Buying the wrong one is a common installation failure that only shows at test time.
This is the connector guide: the shared interface, the differences that matter, and the purchase checks.
The Shared Interface
| The element | Cat6 | Cat6a |
|---|---|---|
| Pinout | T568A/B, 8 contacts | The same |
| Plug fit | Standard RJ45 jack | The same |
| Category rating | To 250 MHz | To 500 MHz |
| Body | Smaller entry | Wider entry for shielded cable |
The interface rows are identical, which is why the parts look interchangeable. The body rows are where the difference lives.
The Differences That Matter
- Cable entry: Cat6a's larger diameter needs a wider connector body
- Shield contact: Cat6a connectors bond the foil or braid to the plug shell
- Grounding continuity: the channel's shield depends on it
- Termination jigs: Cat6a wants the matching tool for consistent results
The shell and the shield contact are the functional difference: without them, the shield's benefit stops at the connector.
The Purchase Checks
| The check | The question |
|---|---|
| Cable construction | Shielded? Then shielded connector |
| Category marking | Does the connector state Cat6a? |
| Entry size | Does it accept the cable's diameter? |
| Tooling | Is the termination jig compatible? |
Standards and Verification
| The reference | The relevance |
|---|---|
| TIA-568.2-D | Connector and channel requirements |
| IEC 60603-7 | The RJ45 interface standard |
| Field test | The proof the assembled channel meets the category |
Per-SKU connector designs are not provided in the knowledge base. The interface is standard; confirm the connector's category and shield support with its datasheet.
Real-World Applications
The shielded termination
A Cat6a install with shielded jacks: the connectors matched to the cable – shield continuity confirmed before the channel test.
The wrong-body discovery
Cat6 connectors offered for a Cat6a shielded cable: the entry too narrow, the shield unbonded – the order corrected before a single termination.
The mixed spare box
A technician's box holding both connector types: labeled by category and body – the mix-up that used to cost a re-termination retired.
Related reading: The shielding the connector must carry? Read is Cat6a shielded — blogs/news/is-cat6a-shielded
Related reading: The cord construction the connector lives on? Read the patch cable guide — blogs/news/ethernet-patch-cable-anatomy
Frequently Asked Questions
Are Cat6 and Cat6a RJ45 connectors interchangeable?
At the interface yes – same pinout and jack. Physically, Cat6a connectors have a wider body and shield contacts for shielded Cat6a cable.
Can I use Cat6 connectors on Cat6a cable?
Only if the connector accepts the diameter and the construction matches. Shielded Cat6a cable with unshielded connectors loses the shield's benefit.
What is the difference in performance?
The connector's category rating: Cat6a connectors are rated to 500 MHz and support the shield path; Cat6 connectors to 250 MHz.
Do I need special tools?
Cat6a termination benefits from the matching jig and careful shield handling; the wrong tool produces inconsistent results that fail the test.
