Cat6 Factory Sourcing: The Audit Sequence

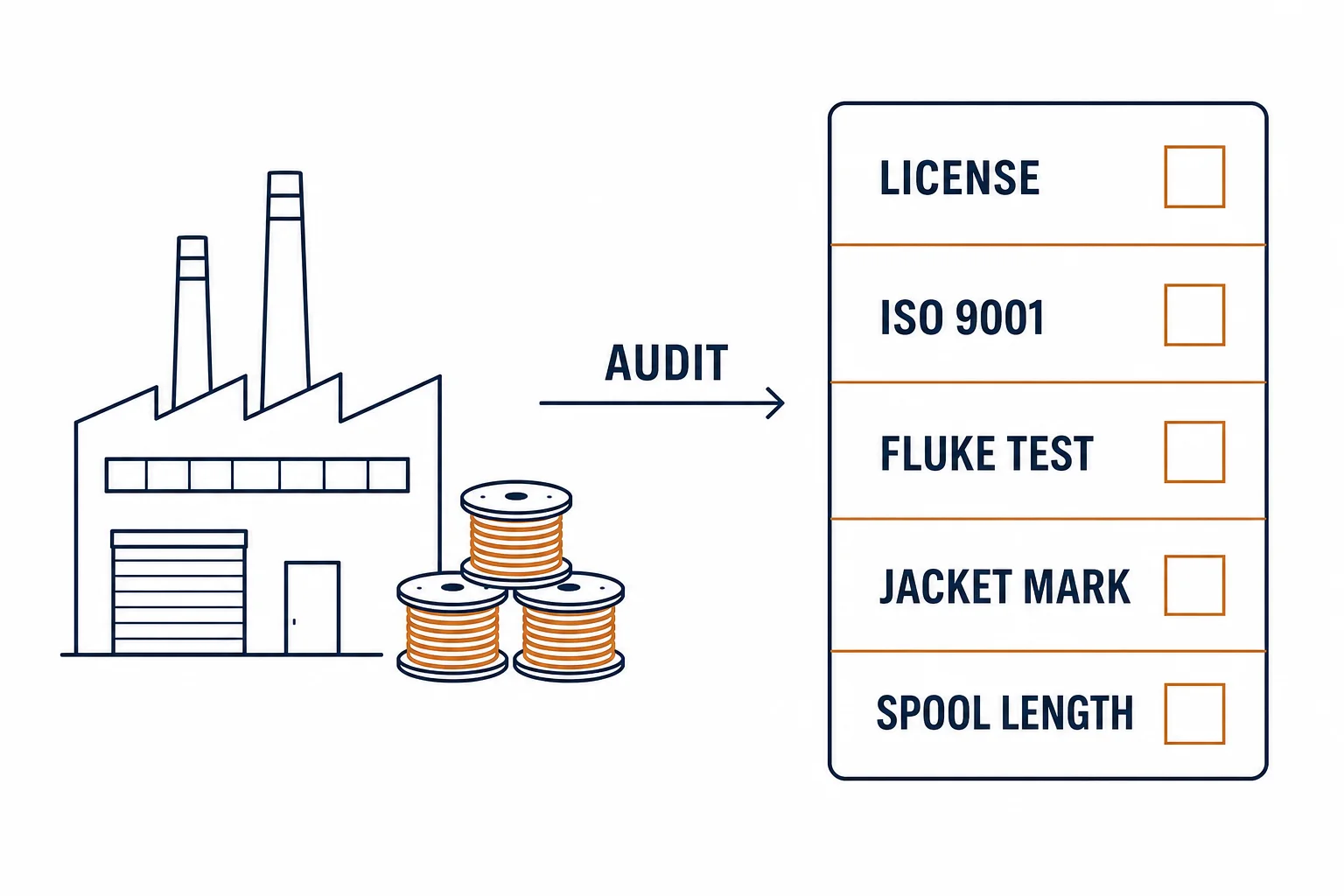

Quick answer / TL;DR: Short answer: qualify a Cat6 factory in four stages – documents (business license, ISO 9001, category test reports), sample measurement (conductor gauge, pair geometry, jacketing, spool length), production evidence (line video or on-site audit), and pre-shipment inspection. Each stage is cheaper than the next; a red flag at any stage ends the conversation early.
Sourcing Cat6 from a factory is a qualification exercise: the cable's performance lives in construction tolerances that no photograph can prove, and the proof is documents plus measured samples. The sequence below orders the checks from cheapest to most expensive so that a failure costs a conversation rather than a container.
This is the factory-audit guide: the document set, the sample protocol, the production evidence, and the inspection decision.
Stage 1: Documents
| The document | What it should prove |
|---|---|
| Business license | The entity and its scope |
| ISO 9001 | A quality system – verify the scope and issuer |
| Category test report | Fluke or equivalent channel/permanent-link results naming the product |
| Jacket material declarations | PVC, LSZH, or plenum compliance as claimed |
The document stage filters the catalog sellers: each document should name the entity or the product. A certificate that could describe any cable describes none.
Stage 2: Sample Measurement
- Conductor: gauge measured, strand count counted
- Pairs: four twisted pairs, correct color code, spline where the construction requires
- Jacket: thickness, marking, and the category printed along it
- Spool: length measured against the label
- Capacitance and impedance: verified against the datasheet where stated
The sample is the physical contract: measured numbers, not impressions. Keep the approved sample sealed for the production comparison.
Stage 3 and 4: Production and Inspection
| The stage | The evidence |
|---|---|
| Production | Line video or on-site audit – extrusion, pairing, jacketing |
| Inspection | Third-party pre-shipment check of quantity, marking, and packaging |
Standards and Verification
| The reference | The relevance |
|---|---|
| TIA-568.2-D | The category the test report should reference |
| ISO/IEC 11801-1 | The international equivalent |
| ISO 9001 | The quality system behind repeatability |
Specific factory names and certificate numbers are not provided in the knowledge base. The audit sequence is standard practice; verify each document with its issuing body.
Real-World Applications
The catalog-only supplier
A supplier unable to provide a line video or a category report: the qualification ended at stage one – the quote set aside before any sample cost.
The measured sample
A sample measuring one gauge size down from the claim: the measurement sheet settling the discussion – the specification reissued with the gauge called out.
The inspection that paid
A first container held for inspection: spool lengths short across the pallet – the shortfall corrected before shipment.
Related reading: The order tiers after qualification? Read Cat6 wholesale — blogs/news/cat6-wholesale-bulk-moq
Related reading: The channel map around the factory? Read where to buy ethernet cable — blogs/news/where-to-buy-ethernet-cable
Frequently Asked Questions
How do I verify a Cat6 factory?
Four stages: documents (license, ISO 9001, category test reports), sample measurement, production evidence, and pre-shipment inspection.
What should be measured on a Cat6 sample?
Conductor gauge and strand count, pair construction and color code, jacket thickness and marking, spool length, and capacitance or impedance where stated.
Is a category test report enough?
It is necessary, not sufficient – the report must name the product and match the construction shipped. Combine it with sample measurement.
When is third-party inspection worth it?
For a new factory or a first container, usually yes: it catches quantity and marking gaps while remedies are still cheap.
