Cat6 Cable Types: Reading the Taxonomy
Quick answer / TL;DR: Short answer: Cat6 SKUs vary on three axes – shielding (U/UTP or F/UTP), conductor (solid or stranded), and jacket (CM, CMR, CMP, outdoor). Solid shielded plenum cable and stranded unshielded patch cable are both 'Cat6' and are not interchangeable. Order with all four lines: category, shield, conductor, jacket.
'Cat6 cable types' is a taxonomy question, not a performance question: one category, three independent axes – shielding, conductor form, and jacket rating – multiplying into the SKU list. Buyers who order by category alone receive whichever variant the warehouse picks.
This is the taxonomy guide: the three axes, the combinations that matter, and the four-line order that names one product.

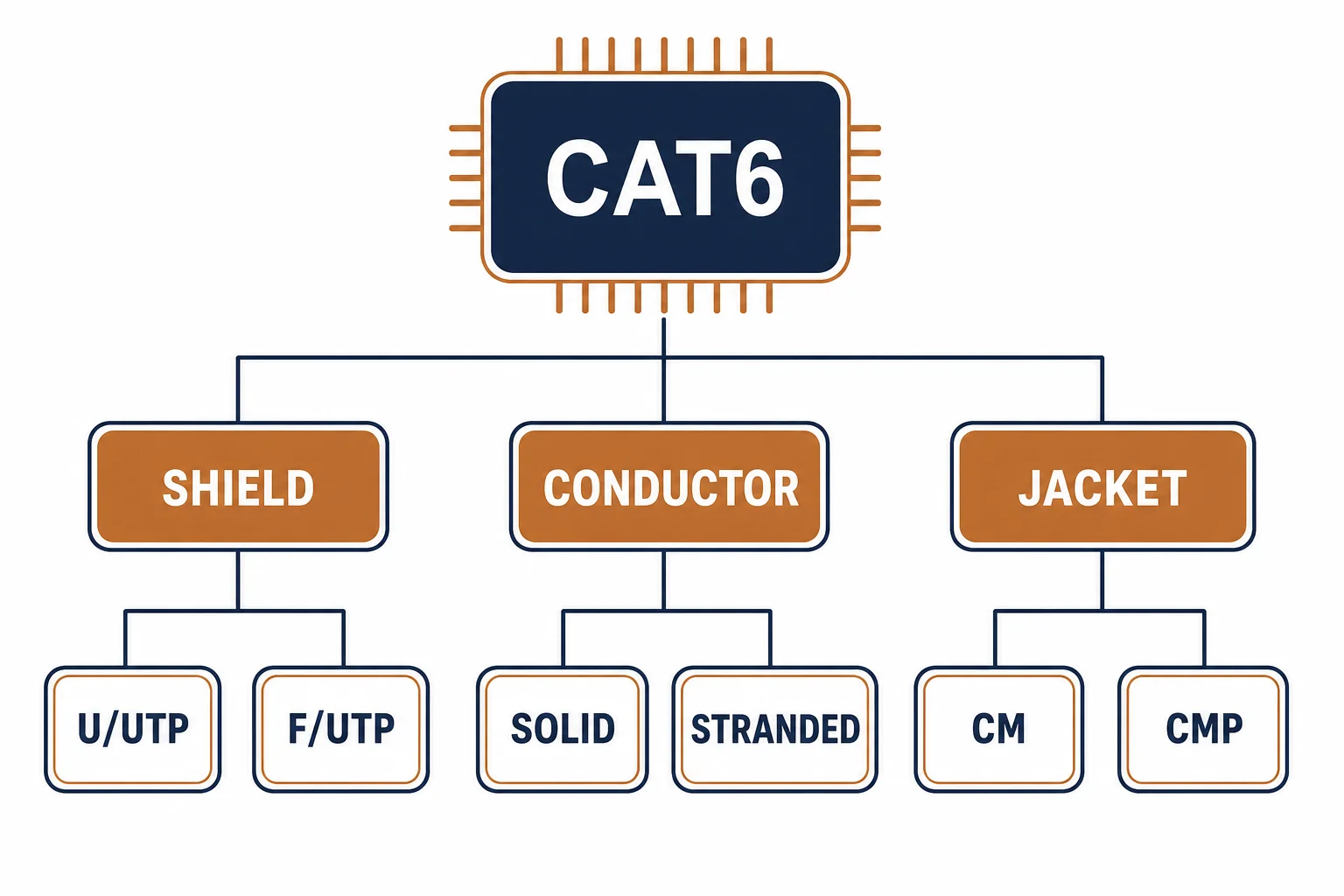

The Three Axes
| The axis | The options | The effect |
|---|---|---|
| Shield | U/UTP, F/UTP | Interference rejection, grounding duty |
| Conductor | Solid, stranded | Permanent run versus patch cord |
| Jacket | CM, CMR, CMP, outdoor | Where the cable may legally run |
The axes multiply rather than substitute: choosing a plenum jacket does not choose a shield, and neither chooses the conductor.
The Combinations That Matter
- Solid U/UTP CM: the office horizontal workhorse
- Solid F/UTP CMR: a riser in a noisy building
- Stranded U/UTP: patch cords, no shield
- Solid F/UTP outdoor: exterior runs in conduit
Four combinations cover most projects. The mistake is assuming one SKU covers a building.
The Four-Line Order
| The line | The example |
|---|---|
| Category | Cat6 |
| Shield | F/UTP |
| Conductor | Solid, 23 AWG |
| Jacket | CMR, 305 m box |
Standards and Verification
| The reference | The relevance |
|---|---|
| TIA-568.2-D | Category 6 and shielded requirements |
| ISO/IEC 11801-1 | Class E and screening classes |
| UL 444 / NEC | Jacket ratings |
Per-SKU availability varies by supplier. The taxonomy is standard; confirm the exact combination on the datasheet and the jacket print.
Real-World Applications
The project with one SKU
A small office ordering 'Cat6' and receiving unshielded CM: fine for the desks, wrong for the riser. The second SKU added – the taxonomy learned mid-project.
The patch-cord batch
Stranded U/UTP cords ordered separately from the solid cable – the conductor axis respected, the cords surviving daily use.
The shielded riser
A riser needing shielding and a plenum jacket: the order line written as Cat6 F/UTP CMP – the combination that satisfied both requirements without a second guess.
Related reading: The physical dimensions behind the SKU? Read the cable size guide — blogs/news/cat6-cable-size
Related reading: The conductor form decision? Read solid versus stranded — blogs/news/solid-vs-stranded-cat6
Frequently Asked Questions
What are the types of Cat6 cable?
Variants on three axes: shielding (U/UTP, F/UTP), conductor (solid, stranded), and jacket (CM, CMR, CMP, outdoor).
Is shielded Cat6 a different category?
No – the category is the same; the construction differs. It is a separate SKU with grounding requirements.
Which Cat6 type do I need for an office?
Typically solid U/UTP with a CM or CMR jacket for horizontal runs, plus stranded cords.
How do I make sure I get the right variant?
Order with four lines: category, shield, conductor, jacket – and check the jacket print on delivery.
