Quick Answer / Summary: Cat 7 shielded plenum cable must use a CMP-rated jacket tested to NFPA 262 in addition to meeting the Class F electrical limit. Availability is limited compared with Cat 6A plenum, lead times are longer, and the price premium is large. Confirm the fire rating certificate and the electrical test report separately.
Plenum Cat 7 is a narrow product. It combines a 600 MHz shielded construction with a fire-rated jacket that meets NFPA 262, and that combination is far less common than plenum Cat 6A. Buyers who assume availability discover the constraint at the worst moment: after the containment is installed.
Plenum Cat 7 carries two claims at once: 600 MHz performance and an NFPA 262 jacket.Two Certifications, Not One
A plenum cable has to satisfy two independent requirements: electrical performance and fire safety. Sellers often present one as if it proves the other.
The electrical side
Cat 7 means ISO/IEC Class F at 600 MHz, which in practice means S/FTP construction. The test report should name the limit and the frequency, with a batch reference. A report that says low smoke or plenum rated tells you nothing about bandwidth.
The fire side
CMP jackets are tested to NFPA 262 for flame spread and smoke density in air-handling spaces. The certificate should name the standard and the listing body. A datasheet that says flame retardant without naming NFPA 262 is not a plenum claim.
Where Plenum Rating Is Actually Required

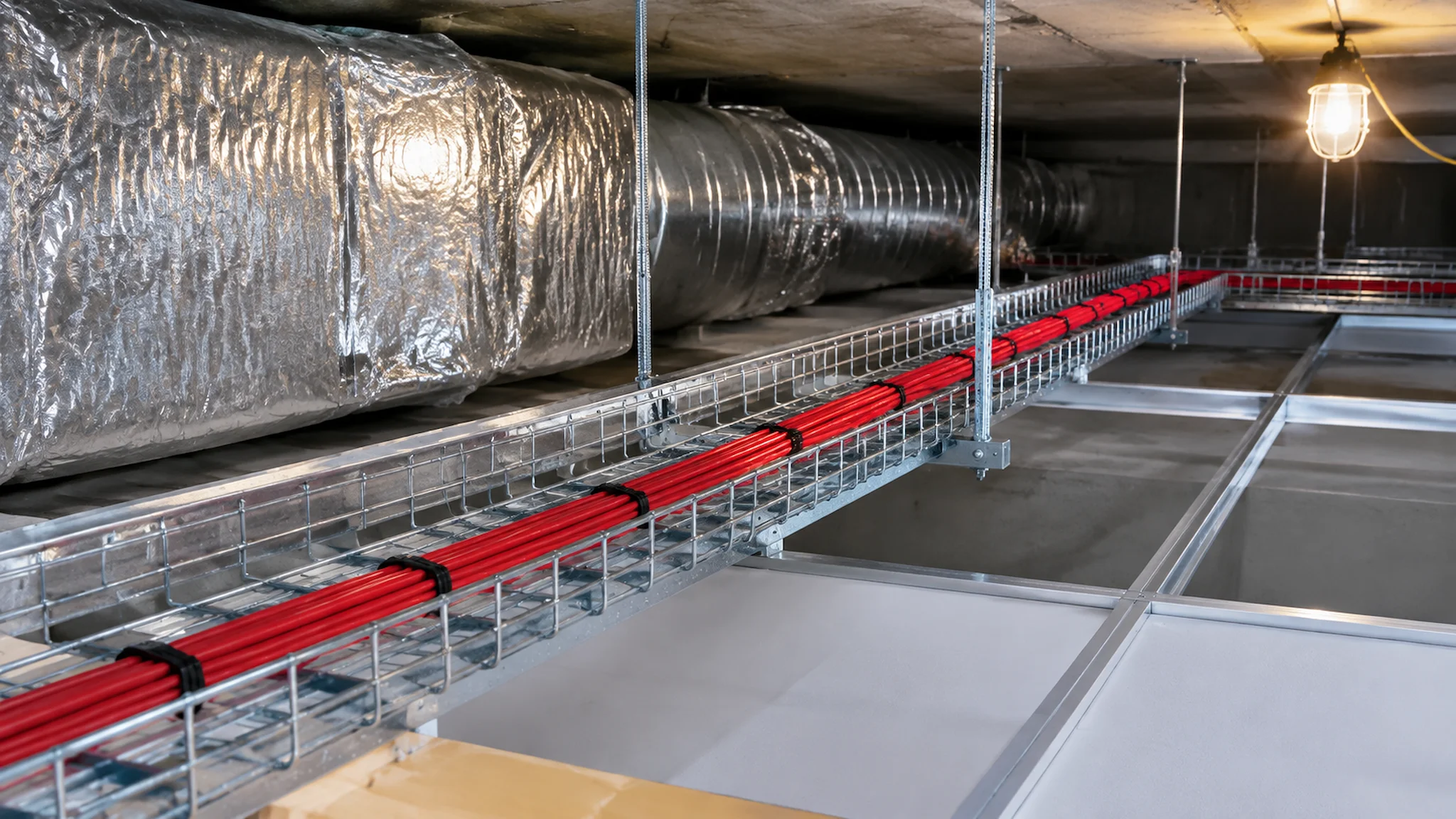

Plenum rules apply to air-handling spaces: the cavity above a suspended ceiling or below a raised floor that is used as a return-air path. Not every ceiling void is a plenum, and treating every void as one adds cost for no compliance benefit.
Confirm with the mechanical design
Ask the mechanical engineer whether the return air uses the ceiling void. If it does, CMP is required. If the space is fully ducted, CMR or another approved rating may be acceptable, subject to the local code.
Local code overrides
Local amendments can be stricter than the model code. Check the authority having jurisdiction before ordering, because replacing a plenum cable after installation is expensive and disruptive.
Supply Reality for Cat 7 Plenum
The product exists but the supply base is thin. That changes how you buy: longer lead times, fewer stocked lengths and less room to negotiate on small quantities.
Lead time and minimums
Plan for a production lead time rather than a stock pick, and expect minimum order quantities on non-standard jacket colours. Order the full project length in one lot so the batch and the jacket colour match across the installation.
Price premium and substitution risk
The CMP compound is the expensive part, and it is also where substitution appears. A quote that is far below others usually means a CMR jacket, a different compound or a non-listed product. Ask for the certificate before comparing price.
Specifying and Verifying the Order
A plenum Cat 7 purchase order needs to carry both certifications explicitly, plus the construction details that make the electrical claim credible.
What to write into the PO
Name the category, the Class F limit, S/FTP construction, the AWG and the jacket rating with the fire standard. Require a certificate for the jacket compound and an electrical test report for the batch, and state that both must match the delivered reel labels.
Acceptance checks
On delivery, confirm the jacket print shows the plenum rating, check the certificate reference against the reel, and test a sample channel. A plenum cable that fails the electrical limit costs more to replace than any other category.
Plenum Cat 7 Specification Checklist
| Requirement | What to specify | Evidence to demand |
|---|
| Electrical category | Class F, 600 MHz | Test report naming the limit and frequency |
| Construction | S/FTP, foil per pair plus braid | Construction drawing |
| Jacket rating | CMP tested to NFPA 262 | Listing certificate for the compound |
| Conductor | Bare copper, stated AWG | Caliper check on a sample |
| Batch traceability | Reel label matches reports | Batch reference on both documents |
| Length | Measured, not nominal | Weight and pull measurement |
Practical Applications
Cat 7 plenum is specified in air-handling ceiling voids of laboratories, hospitals, broadcast facilities and premium commercial buildings where both high-frequency performance and fire safety are required. It is rarely the cheapest compliance route, so confirm the plenum classification before committing to the category.
Reviewed by ZONG Cable Editorial | Last updated: 26 October 2026 | Reviewed against TIA-568.2-D / ISO/IEC 11801-1 Class F and FA channel requirements.
How this guide was built: Fire performance references NFPA 262 as applied to CMP cable in air-handling spaces, while the electrical requirement follows ISO/IEC 11801-1 Class F. Both are treated as separate acceptance criteria because one certificate cannot prove the other.
Disclosure: We do not certify cable or interpret local building codes for your jurisdiction. Confirm plenum classification with the mechanical engineer and the authority having jurisdiction.
Frequently Asked Questions
Is Cat 7 plenum cable common?
Less common than Cat 6A plenum. The combination of 600 MHz shielding and a CMP jacket is a narrow product, so availability and lead time are real constraints.
Does CMP mean the cable is Cat 7?
No. CMP describes the jacket fire performance. Cat 7 describes the electrical category. A cable can be plenum rated and still be Cat 6, so both must be stated.
Can I use CMR cable above a ceiling?
Only if the space is not used for return air and local code allows it. If the void is a plenum, CMP is required regardless of the cable category.
Why is plenum Cat 7 so much more expensive?
The fire-rated compound and its listing cost far more than standard PVC, and the shielded construction adds cost on top. Low production volume keeps unit prices high.
How do I verify the jacket rating?
Check the print on the jacket, the listing certificate and the batch reference. Ask the supplier to confirm the compound supplier and the standard the jacket was tested to.
