Quick Answer / Summary: Buy Cat 7 patch cables as tested assemblies, not as cable plus plugs. Specify stranded conductor for flexibility, shielded plugs with a metal shell bonded to the foil and drain wire, and a strain relief boot that holds the cable without crushing the pairs. Require a test certificate per assembly for volume orders.
A Cat 7 patch cable is only as good as its terminations. The cable can be perfectly shielded and still fail at the plug if the foil is not bonded, the drain wire floats or the boot pulls the pair geometry apart. When buying at volume, the assembly process matters more than the reel price.
In a patch cable the plug, not the reel, decides whether the shield works.Stranded Cable, Not Leftover Reel
Patch cables need flexibility, so they use stranded conductors rather than the solid conductor used in permanent links. Building patch cords from leftover solid reel cable is a false economy: the cable work-hardens and the assembly fails at the boot.
Strand count and AWG
Patch cable is typically 26 or 28 AWG stranded, sometimes 24 AWG for heavy-duty use. Thinner stranded cable is more flexible but has higher attenuation, which is acceptable at patch lengths and not at long runs. Match the assembly to the job rather than standardising on the thinnest option.
Why solid cable makes a bad patch cord
Solid conductor breaks after repeated flexing. A patch cord made from solid cable may pass a test at delivery and fail within months in a rack where it is moved. The failure appears as an intermittent link, which is the most expensive kind to diagnose.
The Shielded Plug Problem
Cat 7 patch cables need a shielded plug whose shell bonds to the foil and the drain wire. That bond is the difference between a shielded assembly and a cable with a metal-looking connector.
What a proper shielded plug does
The shell wraps the foil and contacts the drain wire, and the plug body connects that shell to the jack shield. If the drain wire is cut short or the foil is not folded onto the shell, the shield floats and the assembly behaves like an unshielded cable with a heavier jacket.
Boot and strain relief
A boot that compresses the cable too hard changes pair geometry near the plug and raises crosstalk. Look for a boot that provides strain relief without crushing, and check that the latch is protected so it survives repeated patching.
Custom Lengths and Volume Orders
Buying patch cables at volume is mostly a length-and-labelling exercise. Standard lengths cost less because the assembly line is set up for them; custom lengths add setup time and sometimes a minimum.
Length tolerance
Specify a tolerance, typically plus or minus a small percentage of the nominal length. Without one, a 2 m cord can arrive at 1.8 m and leave a rack looking untidy or a run short.
Labelling and colour
Volume buyers often want colour coding by function and a printed label or a barcode. Both are easy for the factory and both add a setup cost, so state them at quotation rather than at delivery.
Testing Finished Assemblies
A patch cable is a finished product, and it should arrive with evidence that it was tested as one. Testing the reel tells you nothing about the plug.
What to require
For volume orders, a continuity and pair-map test on every assembly, plus a sample channel test at the category limit. The report should carry an assembly reference that matches the label on the bag.
Incoming checks
Spot-check length, plug latch retention, boot fit and the shield continuity between plug shells. A simple continuity test between the two connector shells catches floating shields quickly.
Cat 7 Patch Cable Specification Points
| Attribute | Recommended | Why it matters |
|---|
| Conductor | Stranded, 26 or 28 AWG | Flex life in racks and at desks |
| Shield | Foil per pair plus braid, bonded | Keeps the shield continuous through the plug |
| Plug | Shielded with metal shell | Bonds foil and drain wire to the jack |
| Boot | Strain relief without crushing | Protects pair geometry at the plug |
| Length | Stated with tolerance | Keeps racks and runs predictable |
| Test | Per-assembly continuity plus sample channel | Proves the assembly, not just the cable |
Practical Applications

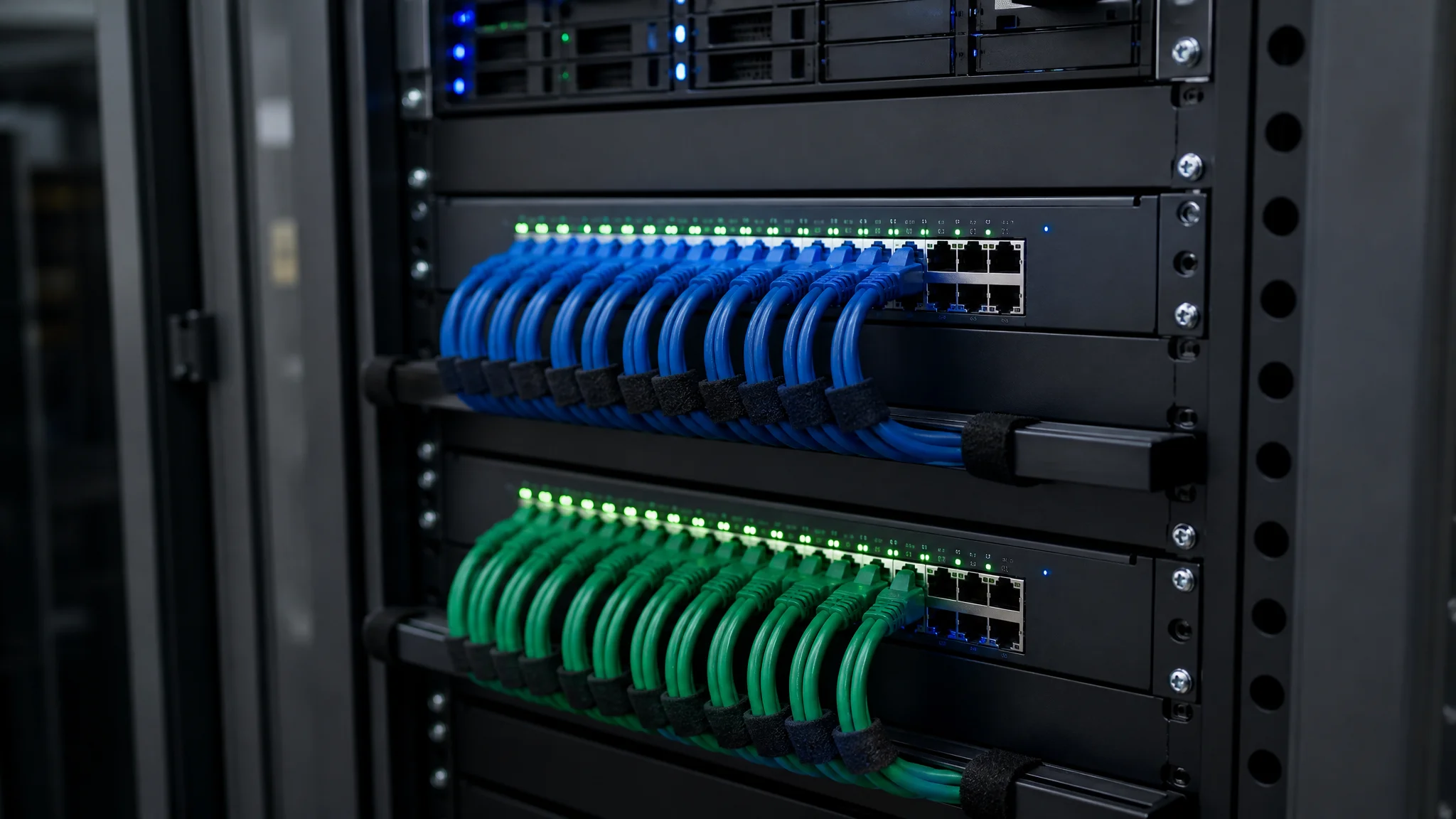

Cat 7 patch cables are bought for shielded racks, industrial cabinets, laboratory benches and broadcast patch bays where the permanent link is already Class F. They are also used to connect shielded panels to equipment in high-interference areas, provided the shield path stays continuous end to end.
Reviewed by ZONG Cable Editorial | Last updated: 26 October 2026 | Reviewed against TIA-568.2-D / ISO/IEC 11801-1 Class F and FA channel requirements.
How this guide was built: Recommendations follow Class F channel practice: stranded patch conductors, shielded plugs bonded to foil and drain wire, and assembly-level testing rather than reel-level testing. Length and test guidance reflects how patch assemblies are ordered at volume.
Disclosure: We do not manufacture or sell patch cables. Require test certificates from your supplier and spot-check shield continuity on arrival.
Frequently Asked Questions
Can I make Cat 7 patch cables from bulk cable?
You can, but use stranded patch cable rather than solid reel cable. Solid conductor breaks with flexing, and field-made assemblies rarely match factory test coverage.
Do Cat 7 patch cables need shielded plugs?
Yes if you want the shield to do anything. An unshielded plug breaks the shield path at the most vulnerable point.
What lengths are standard?
Common lengths run from 0.5 m to 5 m in rack use and up to 10 m or more at desks. Custom lengths are available but add setup cost and a minimum quantity.
How do I check shield continuity?
Use a continuity tester between the metal shells of the two plugs. If there is no continuity, the drain wire or foil bond is open.
Are slim Cat 7 patch cables a good idea?
They save space in dense racks but use thinner conductors and have less margin. Use them where airflow and density matter and keep them short.
