Quick Answer / Summary: Audit a Cat 7 supplier on twelve points: extrusion lines, shielding capability, test equipment frequency range, batch records, incoming copper control, in-process checks, finished-goods testing, traceability, packaging, calibration, corrective action and change control. Score each with evidence rather than opinion.
A Cat 7 supplier audit is not a factory tour with coffee. It is a short, evidence-based review of the operations that decide whether a reel meets 600 MHz consistently. Twelve checks cover the difference between a plant that can produce Class F cable and one that assembles it.

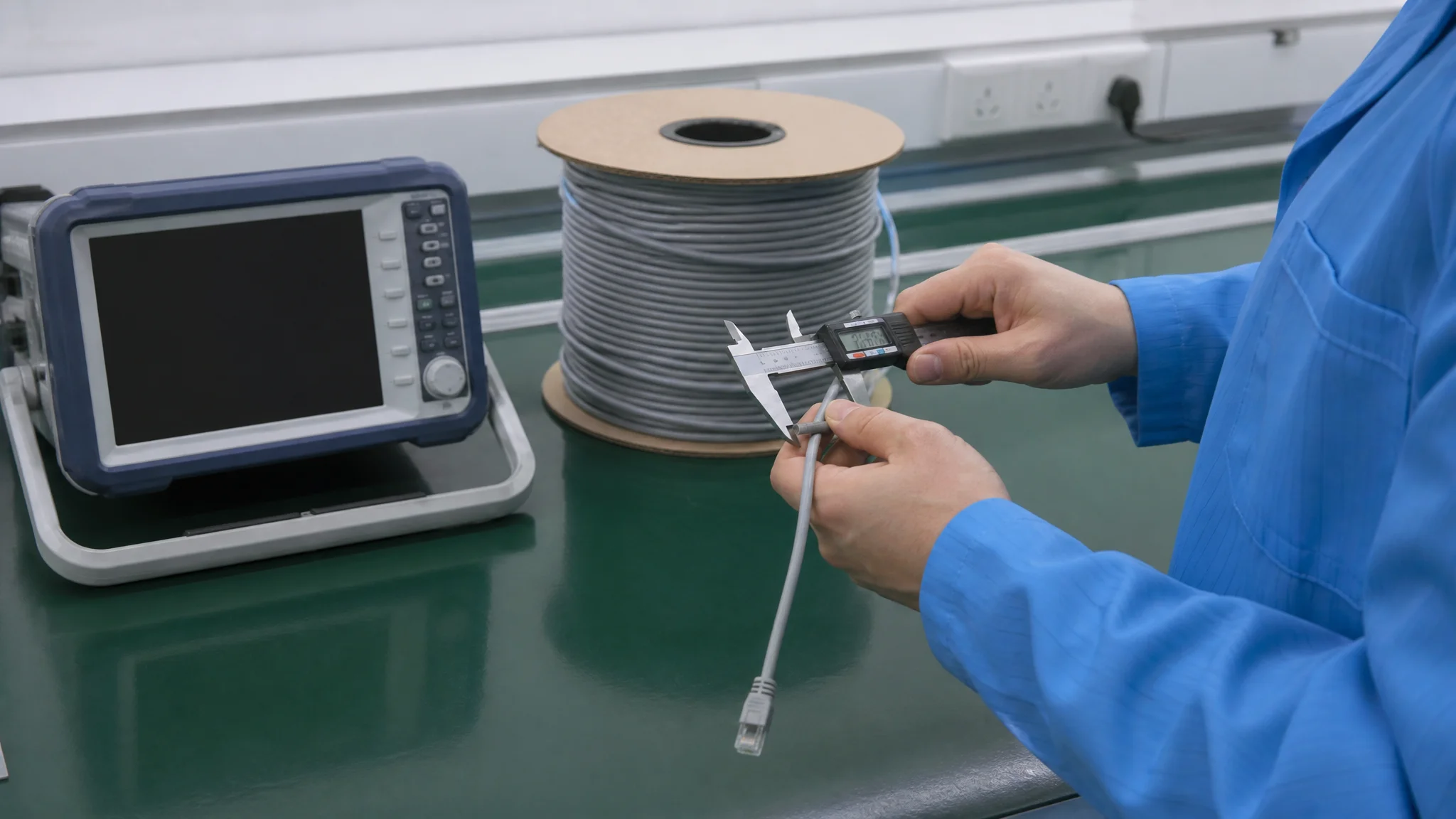

Audit what can be evidenced: lines, records, calibration and corrective action.Process Checks: Can They Build It
The first four checks establish physical capability. A supplier that cannot shield or test at 600 MHz cannot produce Cat 7 consistently, regardless of what the catalogue says.
Extrusion and shielding lines
Ask to see the insulation and jacket extrusion lines and the shielding operation. Cat 7 requires foil per pair plus an overall braid, and the braiding equipment is the part most traders do not own. Count the lines and note the maximum line speed claimed for shielded constructions.
Test equipment range
A Class F channel test needs equipment that covers 600 MHz. Ask for the model, the calibration date and a sample report from the line. A plant with only a continuity tester is not testing Cat 7, whatever the certificate says.
Control Checks: Do They Hold It
Capability without control produces a good first batch and a variable third one. The next four checks look at how the process is held inside limits.
Incoming copper and compound
Ask how conductor is verified on receipt: supplier certificate, resistance measurement, diameter check. Ask the same for the jacket compound. A plant that accepts incoming material on trust is trusting its supplier’s margin, not its own quality system.
In-process and finished testing
Look for recorded in-process checks (diameter, concentricity, pair lay) and finished-goods tests with pass or fail recorded against the limit. Records that contain only passes are a warning sign; real production has some failures and corrective notes.
Record Checks: Can They Prove It
Records are what turn a product into a defensible supply relationship. If the factory cannot retrieve a batch record, a customer complaint becomes an argument.
Traceability from reel to batch
Ask to follow one finished reel back to its production batch, its copper lot and its test report. Time how long it takes. Under fifteen minutes indicates a working system; a day indicates a filing cabinet.
Calibration and change control
Check calibration labels on the tester and the calipers, and ask how a change in compound or conductor is approved and communicated. Undocumented change is the most common route by which a compliant product becomes a non-compliant one.
Response Checks: Do They Fix It
The last four checks are about behaviour after a problem. This is where a supplier’s real quality system shows, because it is the part that cannot be staged for a visit.
Corrective action records
Ask for two recent corrective actions, including root cause and verification of the fix. A supplier that cannot produce them either has no system or has never had a defect, and the second is not credible in cable manufacturing.
Packaging and dispatch control
Inspect the packing line: reel protection, length marking, label accuracy and pallet condition. Cat 7 reels are heavy and easily damaged in transit, and a crushed reel often means a kinked cable inside.
Cat 7 Supplier Audit Scorecard
| Check | Evidence to see | Red flag |
|---|
| Extrusion lines | Lines running, capacity stated | Cannot show the line |
| Shielding capability | Foil plus braid equipment | Foil only, braid outsourced |
| Test equipment | 600 MHz capable, calibrated | Continuity tester only |
| Batch records | Reel to batch trace in minutes | Records not retrievable |
| Incoming control | Copper and compound checks | Trusts supplier certificates |
| Finished testing | Pass and fail recorded | Only passes on file |
| Calibration | Current labels on instruments | Expired or missing |
| Change control | Written approval for changes | Verbal changes |
| Corrective action | Two recent cases with root cause | No records available |
| Packing control | Reel protection and label check | Bare reels, handwritten labels |
Practical Applications
Use this scorecard before a first order, when qualifying a second source, and after a repeated quality complaint. Scoring each line with evidence produces a comparison that survives a management review, unlike a visit summary written from impressions.
Reviewed by ZONG Cable Editorial | Last updated: 26 October 2026 | Reviewed against TIA-568.2-D / ISO/IEC 11801-1 Class F and FA channel requirements.
How this guide was built: The scorecard covers the process, control, record and response layers of a cable quality system, with the electrical requirement anchored to ISO/IEC 11801-1 Class F at 600 MHz. Each line requires physical evidence rather than a verbal claim.
Disclosure: We do not conduct paid audits or recommend audit firms. Use a qualified third party where the order value justifies it.
Frequently Asked Questions
How long does a Cat 7 supplier audit take?
A focused audit of these twelve points fits in one working day at a single plant, including a records trace and a packing line review.
Do I need a specialist auditor?
For a first order at volume, an auditor with cable experience is worth the fee. For smaller orders, a structured visit using this scorecard covers most of the risk.
What is the single most important check?
Traceability. If a reel cannot be tied to a batch and a test report, none of the other claims can be verified after the fact.
Is a certificate enough?
No. Certificates prove a sample or a system at a point in time. The audit checks whether the process that produced the certificate is still running.
How often should suppliers be re-audited?
Annually for active suppliers, and immediately after a batch failure or a change of compound, conductor or line.
