Cat 7 Installation Cost per Drop: Labour and Test

October 26, 2026

Quick Answer / Summary: Cat 7 installation cost per drop is driven by four things: shielded termination time, containment and routing difficulty, the connector system chosen, and channel testing at 600 MHz. Cable material is usually the smallest share on short drops. Price labour on measured time and test every drop before handover.

Installation, not cable, is where a Cat 7 budget is won or lost. A shielded termination takes longer than an unshielded one, the containment has to respect bend radius, and the channel test has to run to 600 MHz. Each of those is a line item, and each varies with site conditions rather than with the cable price.

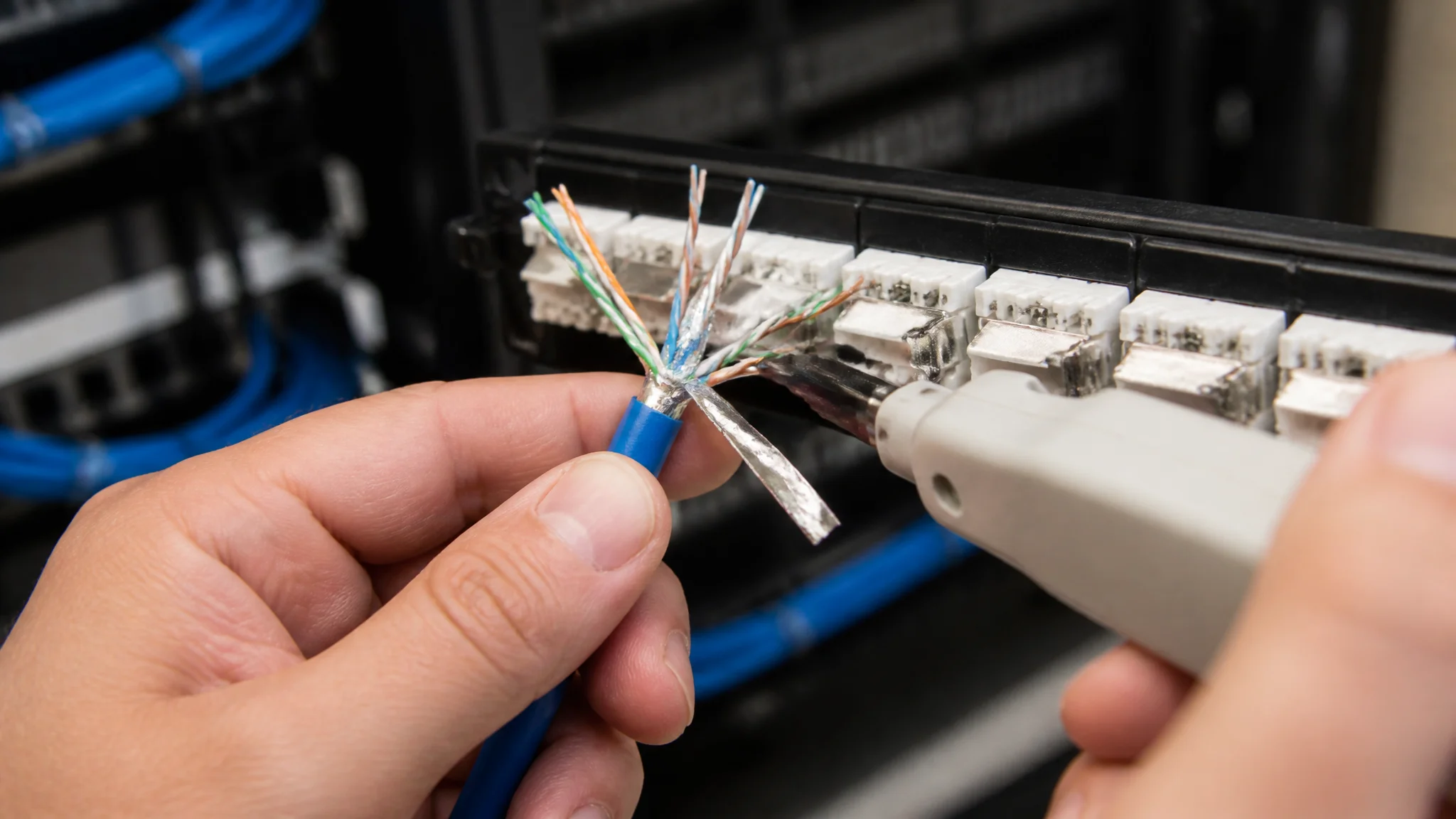

Shielded termination is the labour item that separates Cat 7 budgets from Cat 6 ones.

Why Cat 7 Installation Costs More Than Cat 6

The difference is not mystery labour. It is the physical work of a shielded system: foil and braid handling, drain wire termination, shield bonding and a larger bend radius that changes how the cable is pulled.

Shielded termination time

Folding foil back without tearing it, terminating the drain wire and closing a metal shell takes longer than punching an unshielded keystone. The gap widens when the installer has not used that connector before, because rework on a shielded plug usually means cutting the end off and starting again.

Bend radius and pulling

Shielded Cat 7 is stiffer and less tolerant of tight corners. Routes that worked for Cat 6 may need larger conduit, extra j-hooks or a different path, and those changes are site work rather than cable cost.

The Four Labour Drivers

Four variables explain most of the variation between quotes for the same number of drops. Comparing them explains why one contractor is 40 percent above another without either being wrong.

Route difficulty

Open ceiling grid and new conduit is fast. Retrofit work above a finished ceiling, through fire stops and around services is slow. Ask for a per-drop rate split by route type rather than a single blended number.

Connector system and termination method

Tool-less field connectors reduce time but cost more per unit; crimp connectors cost less but need a trained hand and a correct tool. Either way, the labour rate should name the system being installed.

Testing Is Part of the Installation Cost

A Cat 7 channel test at 600 MHz needs a tester capable of the range and a test setup that includes patch cords. Testing is often quoted as a separate line, and it should be, because it is the only evidence that the installation meets the category.

Channel versus permanent link

A permanent link test proves the cable in the wall. A channel test adds the patch cords and proves what the equipment will actually see. For Cat 7 acceptance, the channel result is the one that matters.

Failure and rework

Every failed drop costs a second visit, a re-termination and a re-test. Budget a rework allowance and require the contractor to report failures by cause, because a cluster of failures usually points to one bad method rather than bad cable.

Building a Per-Drop Budget

A defensible per-drop budget separates material, labour, containment and testing, then adds site-specific allowances. Blended rates hide the item that is actually driving the project.

Separate the lines

Cable, connectors, patch panel ports, containment, labour and testing each get their own line. When a quote arrives, map it onto those lines. Items that cannot be mapped are usually contingency priced as risk.

Compare like with like

Two quotes at different drop counts, route types or test scopes are not comparable. Normalise to a per-drop rate at the same test scope before deciding, and check whether outlets and patch cords are included.

Cat 7 Installation Cost Drivers

Driver	Effect on per-drop cost	How to keep it under control
Route difficulty	High	Split pricing by route type, walk the site before quoting
Shielded termination	High	Pilot drop, one connector system, trained team
Containment changes	Medium to high	Confirm bend radius and fill during design
Test scope	Medium	Test channel once, include cords, log failures
Rework	Medium	Report failure causes, fix the method not the drop
Outlet hardware	Medium	Standardise jacks and panels across the project

Practical Applications

This budgeting model applies to office fit-outs with shielded backbone runs, industrial cells where Cat 7 is chosen for immunity, laboratory and broadcast projects, and retrofit work where containment is the constraint. In each case the installation share rises as runs get shorter and routes get harder.

Reviewed by ZONG Cable Editorial | Last updated: 26 October 2026 | Reviewed against TIA-568.2-D / ISO/IEC 11801-1 Class F and FA channel requirements.

How this guide was built: Installation guidance follows Class F channel practice in ISO/IEC 11801-1 and the termination and test expectations in TIA-568.2-D. Labour relationships are described by task rather than as fixed rates, because they vary by site and market.

Disclosure: We do not install or certify cabling. Use a qualified contractor and an accredited tester for acceptance.

Frequently Asked Questions

How long does a Cat 7 termination take?

Noticeably longer than an unshielded keystone because of foil, drain wire and shell assembly. Time depends on the connector system and installer familiarity, so measure a pilot drop rather than assuming.

Is Cat 7 installation more expensive than Cat 6A?

Usually yes, for the same route. Shielded termination, bonding hardware and a 600 MHz channel test all add work that Cat 6A does not always require.

Do I need to test every drop?

Yes for acceptance. Testing every channel is the only way to prove the installation meets the category and to allocate responsibility if a link fails later.

Can I install Cat 7 in existing conduit?

Sometimes, but check fill ratio and bend radius. Shielded cable is stiffer and larger, and a conduit that suited Cat 6 may not pass Cat 7 without damage.
