Quick Answer / Summary: Read a Cat 6A test report in four steps: confirm it tests Class E-A at 500 MHz, check whether it covers a permanent link or a channel, verify the tester model and calibration date, and look at the margin rather than just the pass. A report without those details cannot support acceptance or a warranty claim.
A Cat 6A test report is only useful if it names the limit, the scope and the instrument. Many reports show a green pass and nothing else, which tells you the tester was happy but not what was tested or whether the result can be reproduced.
A pass is the headline; the limit, scope and margin are the story.Limit, Frequency and Scope
The first page should tell you what was tested against what. If it does not, the rest of the document is decoration.
Class E-A at 500 MHz
Cat 6A corresponds to Class E-A with a 500 MHz test range. A report that says Cat6A compliant without naming the frequency cannot be checked, and may have been produced against a Cat6 limit with a different label.
Permanent link or channel
A permanent link report covers the cable in the wall. A channel report adds patch cords and matches what the equipment sees. For acceptance, the channel result is the one that matters, and the report should state which was tested.

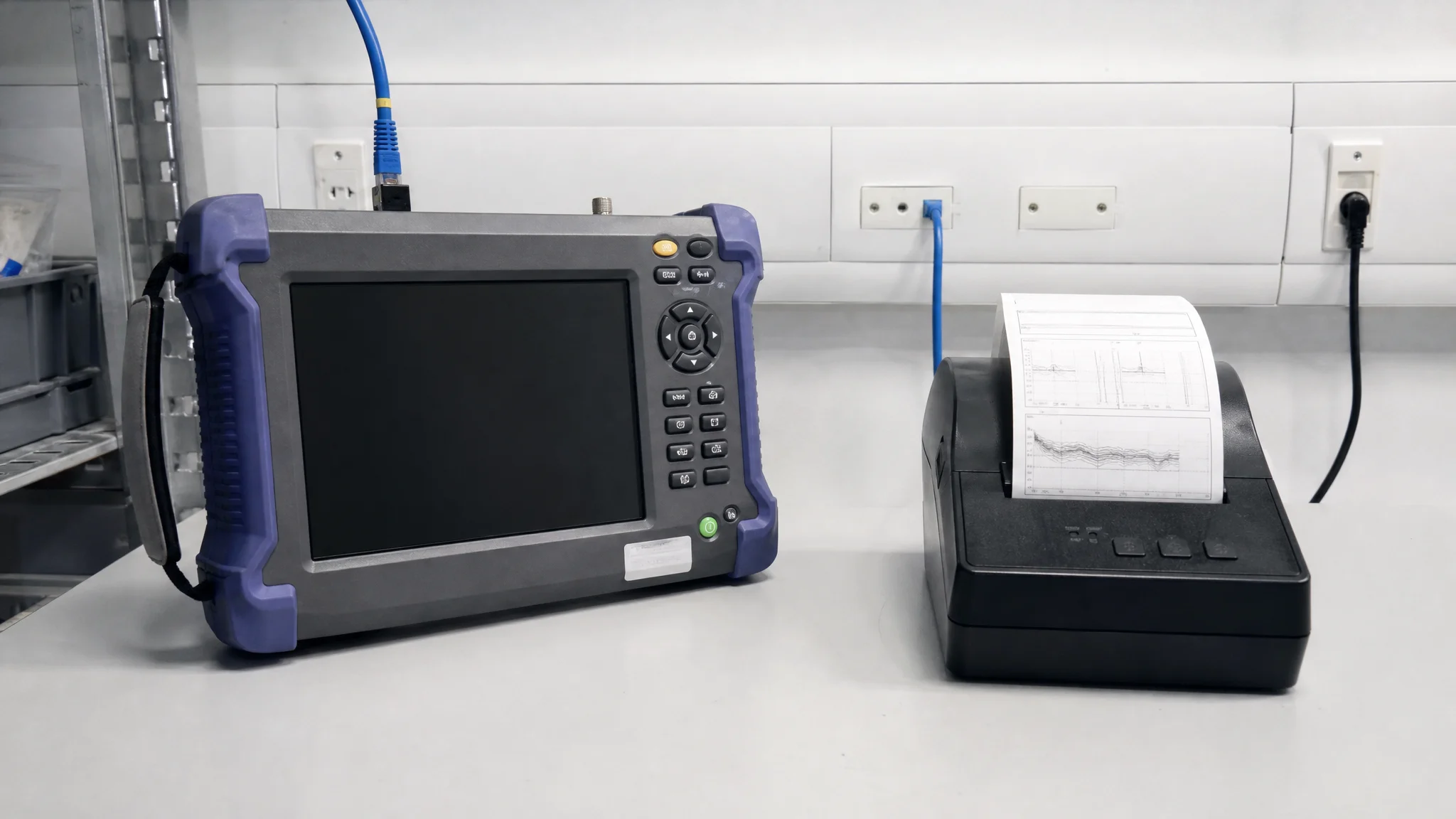

Instrument and Calibration
Test results inherit the credibility of the instrument. A calibrated analyser produces a result that can be defended; an uncalibrated one produces an opinion.
Model and calibration date
Check the tester model and the calibration date on the report. The instrument must cover the frequency range, and the calibration must be current. Ask for the calibration certificate if the report does not show a date.
Test setup and adapters
Channel tests depend on the correct adapter and reference setup. A report produced with the wrong adapter can pass links that would fail in service, and the error is invisible unless the setup is documented. Ask for the adapter type and the reference method on the first page, and compare it with the tester manufacturer’s requirement for the category.
Margin, Not Just Pass
A pass at the limit is technically acceptable and commercially fragile. The margin tells you how much headroom exists before temperature, ageing or a re-termination pushes the link over.
Reading the margin column
Look at the worst-case margin per parameter rather than the average. A link that passes insertion loss by a wide margin but fails crosstalk margin by a hair will be the first to cause trouble when the patch cord is replaced.
Failures and re-tests
Ask for the failure log as well as the passing results. A contractor who reports only passes is either very good or not reporting, and the second is more common. Failures by cause show whether the method is stable.
Using the Report After Handover
The report has a second life after the project ends, when a link fails and someone needs to know whether it was ever compliant.
Filing with as-builts
File results per outlet and per floor with the as-built drawings, and keep the raw files rather than only a PDF summary. Raw files let a later tester reproduce the measurement setup.
Warranty and claims
A batch-linked report supports a claim against the cable supplier; a channel report supports a claim against the installer. Keep both, because a failure can sit on either side of the demarcation, and the first question in any dispute is which side owns it.
Cat 6A Test Report Checklist
| Item | What to look for | Why it matters |
|---|
| Limit | Class E-A, 500 MHz | Confirms the category tested |
| Scope | Permanent link or channel | Defines what the result covers |
| Instrument | Model and calibration date | Makes the result defensible |
| Adapters | Reference setup documented | Prevents false passes |
| Margin | Worst-case per parameter | Shows real headroom |
| Failures | Failure log with causes | Reveals method problems |
Practical Applications
Reading test reports matters at handover, during a dispute and when qualifying a new installer. It also matters for buyers importing cable, because a factory report and an installed channel report are different documents answering different questions. Reviewing the first report you receive in detail sets the standard for every report that follows, and it usually reveals within minutes whether the contractor’s test process is controlled.
Reviewed by ZONG Cable Editorial | Last updated: 28 October 2026 | Reviewed against TIA-568.2-D and ISO/IEC 11801-1 Class E-A channel requirements.
How this guide was built: Report reading follows the Class E-A test requirements in ISO/IEC 11801-1 and TIA-568.2-D, including the distinction between permanent link and channel testing and the need to document instrument calibration and test adapters.
Disclosure: We do not perform certification testing. Use a qualified tester with current calibration for acceptance.
Frequently Asked Questions
What does a Cat 6A test report prove?
It proves that the tested link met the Class E-A limit at the time of testing, with the stated scope and instrument. It does not prove the whole installation.
Should I accept a factory report instead of an installed test?
No. A factory report covers a reel or a sample; an installed channel report covers what was built. Both are useful and neither replaces the other.
How much margin is enough?
There is no universal number, but a thin margin on any parameter is a warning. Look at the worst-case parameter rather than the average.
Do I need raw test files?
They are useful for reproducing results later. Keep them with the as-built records if the tester supports export.
What if the report shows no failures at all?
Ask for the failure log. A clean run is possible with a good team, but a log is stronger evidence of a controlled process.
