Quick Answer / Summary: Audit a Cat 6A supplier on twelve points: extrusion and shielding capability, 500 MHz test equipment, incoming material control, in-process and finished testing, batch traceability, calibration, change control, corrective action, packing and dispatch. Score each with evidence rather than opinion.
A Cat 6A audit is not a factory tour. It is a short review of the operations that decide whether a reel meets Class E-A consistently: the lines, the test equipment, the records and the response when something fails. Twelve checks cover the difference between a plant that can build the cable and one that assembles it.
Audit what can be evidenced: lines, records, calibration and corrective action.Process Checks: Can They Build It
The first checks establish physical capability. A supplier that cannot shield or test at 500 MHz cannot produce Cat 6A consistently, whatever the catalogue says.
Extrusion and shielding lines
Ask to see the insulation and jacket extrusion lines and the shielding operation. Cat 6A often uses F/UTP or S/FTP, and the braiding or foil equipment is the part most traders do not own. Count the lines and note the claimed line speed for shielded construction.
Test equipment range
A Class E-A test needs equipment that covers 500 MHz. Ask for the model, the calibration date and a sample report from the line. A plant with only a continuity tester is not testing Cat 6A, regardless of the certificate on the wall.
Control Checks: Do They Hold It
Capability without control produces a good first batch and a variable third one. These checks look at how the process is held inside limits.
Incoming material control
Ask how conductor is verified on receipt: supplier certificate, resistance measurement or diameter check. Ask the same for the jacket compound. A plant that accepts incoming material on trust is trusting its supplier’s margin rather than its own quality system.
In-process and finished testing
Look for recorded in-process checks such as diameter, concentricity and pair lay, plus finished-goods tests with pass and fail recorded against the limit. Records containing only passes are a warning sign, because real production has some failures and corrective notes.
Record Checks: Can They Prove It
Records turn a product into a defensible supply relationship. If the factory cannot retrieve a batch record, a complaint becomes an argument.
Traceability from reel to batch
Ask to follow one finished reel back to its production batch, its copper lot and its test report, and time how long it takes. Under fifteen minutes indicates a working system; a day indicates a filing cabinet and a person who happens to remember.
Calibration and change control

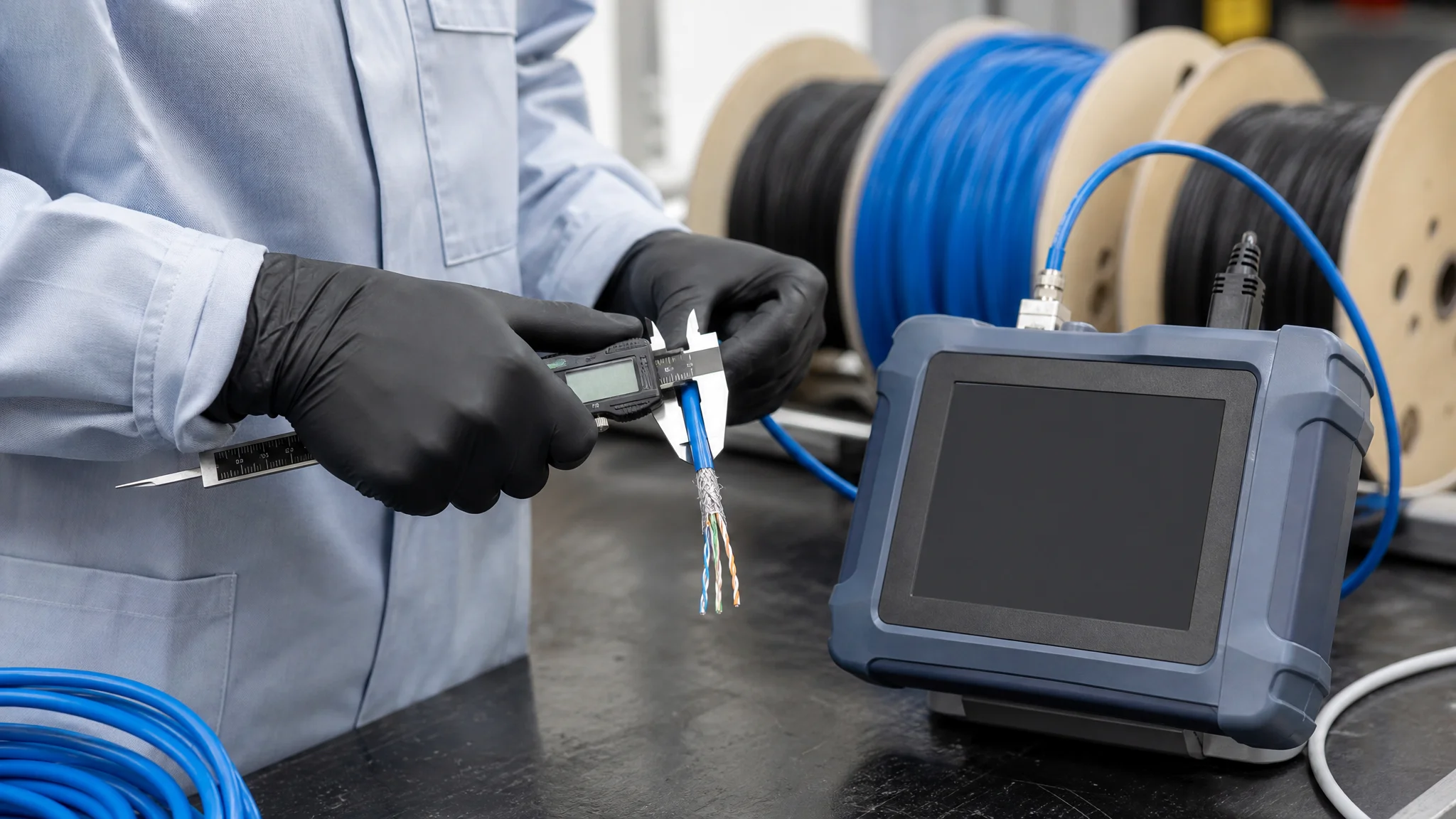

Check calibration labels on the tester and calipers, and ask how a change in compound or conductor is approved and communicated. Undocumented change is the most common route by which a compliant product becomes a non-compliant one.
Response Checks: Do They Fix It
The final checks are about behaviour after a problem. This is where a real quality system shows, because it is the part that cannot be staged for a visit.
Corrective action records
Ask for two recent corrective actions including root cause and verification of the fix. A supplier that cannot produce them either has no system or has never had a defect, and the second is not credible in cable manufacturing.
Packing and dispatch control
Inspect the packing line: reel protection, length marking, label accuracy and pallet condition. Cat 6A reels are heavy and easily damaged in transit, and a crushed reel often means a kinked cable inside that tests badly at the far end.
Cat 6A Supplier Audit Scorecard
| Check | Evidence to see | Red flag |
|---|
| Extrusion lines | Lines running, capacity stated | Cannot show the line |
| Shielding capability | Foil and braid equipment | Foil only, braid outsourced |
| Test equipment | 500 MHz capable and calibrated | Continuity tester only |
| Batch records | Reel to batch trace in minutes | Records not retrievable |
| Incoming control | Copper and compound checks | Trusts supplier certificates |
| Finished testing | Pass and fail recorded | Only passes on file |
| Calibration | Current labels on instruments | Expired or missing |
| Change control | Written approval for changes | Verbal changes |
| Corrective action | Two recent cases with root cause | No records available |
| Packing control | Reel protection and label check | Bare reels, handwritten labels |
Practical Applications
Use this scorecard before a first order, when qualifying a second source and after a repeated complaint. Scoring each line with evidence produces a comparison that survives a management review, unlike a visit summary written from impressions.
Reviewed by ZONG Cable Editorial | Last updated: 28 October 2026 | Reviewed against TIA-568.2-D and ISO/IEC 11801-1 Class E-A channel requirements.
How this guide was built: The scorecard covers the process, control, record and response layers of a cable quality system, with the electrical requirement anchored to ISO/IEC 11801-1 Class E-A at 500 MHz. Each line requires physical evidence rather than a verbal claim.
Disclosure: We do not conduct paid audits or recommend audit firms. Use a qualified third party where the order value justifies it.
Frequently Asked Questions
How long does a Cat 6A supplier audit take?
These twelve points fit into one working day at a single plant, including a records trace and a packing line review.
Do I need a specialist auditor?
For a first order at volume, an auditor with cable experience is worth the fee. For smaller orders, a structured visit using this scorecard covers most of the risk.
What is the single most important check?
Traceability. If a reel cannot be tied to a batch and a test report, none of the other claims can be verified after the fact.
Is a certificate enough?
No. A certificate proves a sample or a system at a point in time. The audit checks whether the process behind it is still running.
How often should suppliers be re-audited?
Annually for active suppliers, and immediately after a batch failure or a change of compound, conductor or line.
