Quick Answer / Summary: Source AOC HDMI from a supplier that assembles the optical engines rather than only buying finished cable. Verify directionality, power draw, bandwidth at the actual length, bend radius and the certification for that length. Treat the connector as an electronic component with its own failure modes.
Active optical HDMI is a different supply chain from copper. The cable contains lasers, photodiodes and driver chips, so the supplier is really an electronics assembler with a fibre supply behind it. That changes what to verify and where failures appear.

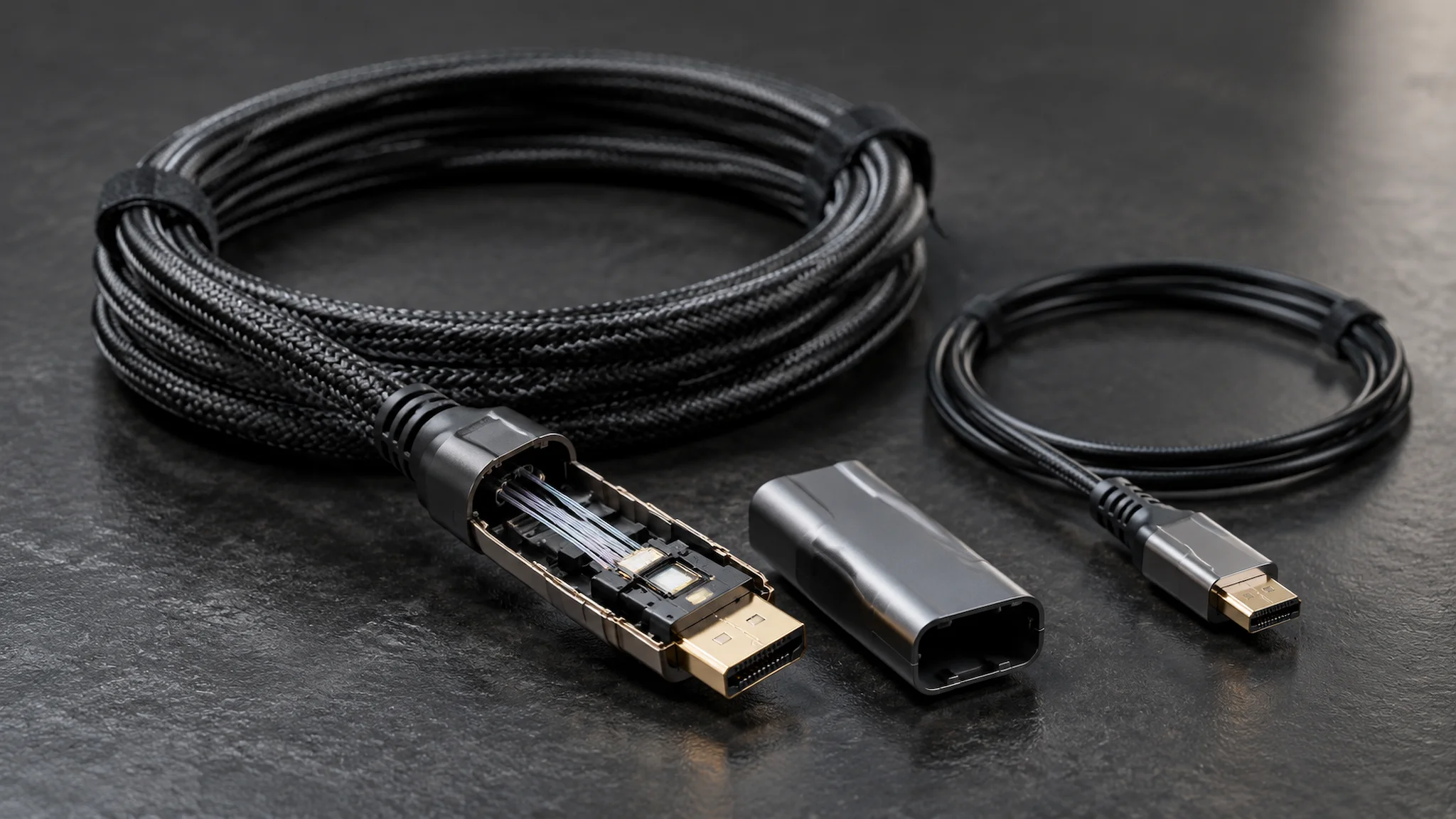

An AOC is an electronic assembly with a fibre inside, not a copper cable.What Makes AOC Different
An AOC carries the signal as light between two electrical ends. The connectors contain active electronics, which means the cable has a direction and a power budget, and both must be respected.
Direction matters
Most AOC HDMI cables are directional: source at one end, display at the other. A customer who installs one backwards sees no picture, and the return is expensive. Clear marking and documentation are part of the product, not an accessory.
Power and heat
The optical engines draw power from the HDMI source. That is usually within budget, but marginal sources and long cables can cause intermittent behaviour that looks like a display fault. Ask for the power draw specification.
Where AOC Supply Chains Differ
The fibre and the optical engine usually come from specialist suppliers, while the cable assembly is done by an HDMI factory. Knowing which part your supplier controls tells you what they can fix.
Engine sourcing
Ask which optical engine family is used and whether the supplier assembles it or buys a finished module. A supplier that assembles can adjust firmware and test at length; one that buys modules can only re-label.
Testing at length
AOC performance depends on the engine and the fibre, and it must be tested at the finished length. Ask for a test report at the exact length you are buying, not at a shorter reference length.
Checks Before the Purchase Order
AOC failures are usually at the connector or in the fibre, and both are detectable with a short protocol.
Sample protocol
Test picture stability at the target resolution and refresh rate for at least an hour, flex the cable near both connectors, and check that the connectors stay cool. Intermittent dropouts under flex are the classic AOC failure.
Certification and labelling
Certification applies at the tested length. Confirm the certificate covers the length you are buying, and check that direction arrows and power requirements are printed on the connector housing.
Commercial Considerations
AOC is a premium product with a shorter replacement cycle than copper, and the commercial terms should reflect that.
Warranty and returns
Ask for a warranty period and a replacement process, because AOC returns are costly to diagnose. A supplier that tests at length before shipping reduces the return rate more than a longer warranty does.
Price versus length
AOC becomes competitive with copper above roughly 5 to 10 m at high bandwidth. Compare total installed cost, including the active copper alternative, rather than price per metre.
AOC HDMI Sourcing Checklist
| Item | What to verify | Failure if missed |
|---|
| Direction | Marked source and display ends | No picture, expensive return |
| Power draw | Specification within source budget | Intermittent dropouts |
| Testing at length | Report at the purchased length | Batch fails at installation |
| Certification | Covers the exact length | Claim not defensible |
| Bend radius | Stated and respected in packing | Fibre damage in transit |
| Warranty | Period and replacement process | Slow resolution on failures |
Practical Applications
AOC HDMI is used for long runs to projectors and displays, digital signage, conference rooms, control rooms and any installation where copper cannot hold 48 Gbps at the required length. It is also common in rental and staging where weight and cable diameter matter. Ask for the optical engine part number and the firmware version shipped with the batch, and record both against the purchase order. A silent engine change is the most common reason an AOC that worked in qualification behaves differently six months later. Ask for the AOC’s maximum pull tension and minimum bend radius in writing, and pass both to the installer. Most AOC failures we see are mechanical rather than optical, and they happen in the first ten minutes of installation when the cable is pulled through a tight corner. Record the engine part number and firmware version against each shipment, and keep a working sample from each batch on the shelf. When a customer reports that a cable bought last year no longer works with a new display, the retained sample is what lets you separate a cable fault from a compatibility change in the source device.
Reviewed by ZONG Cable Editorial | Last updated: 1 November 2026 | Reviewed against HDMI 2.1 (48 Gbps), HDCP 2.2/2.3 and the Ultra High Speed certification program.
How this guide was built: AOC guidance follows the construction of active optical HDMI: electrical-to-optical conversion at each end, directional signal flow and power drawn from the source. Verification focuses on testing at finished length and connector-level failure modes.
Disclosure: We do not supply AOC cable. Confirm engine source, testing at length and warranty terms with the supplier.
Frequently Asked Questions
Is AOC HDMI better than copper?
Above roughly 5 to 10 m at high bandwidth, yes. Below that, passive copper is simpler and cheaper.
Are AOC cables directional?
Most are. Source and display ends are marked, and installing one backwards results in no picture.
Do AOC cables need external power?
Usually not; they draw power from the HDMI source. Check the power draw against marginal sources.
Can AOC be used in walls?
Yes, but respect the bend radius and use a conduit or a detachable connector where the route requires it.
How long do AOC cables last?
The fibre is durable, but the optical engines are electronics. Ask for the warranty and the test protocol rather than a lifespan claim.
